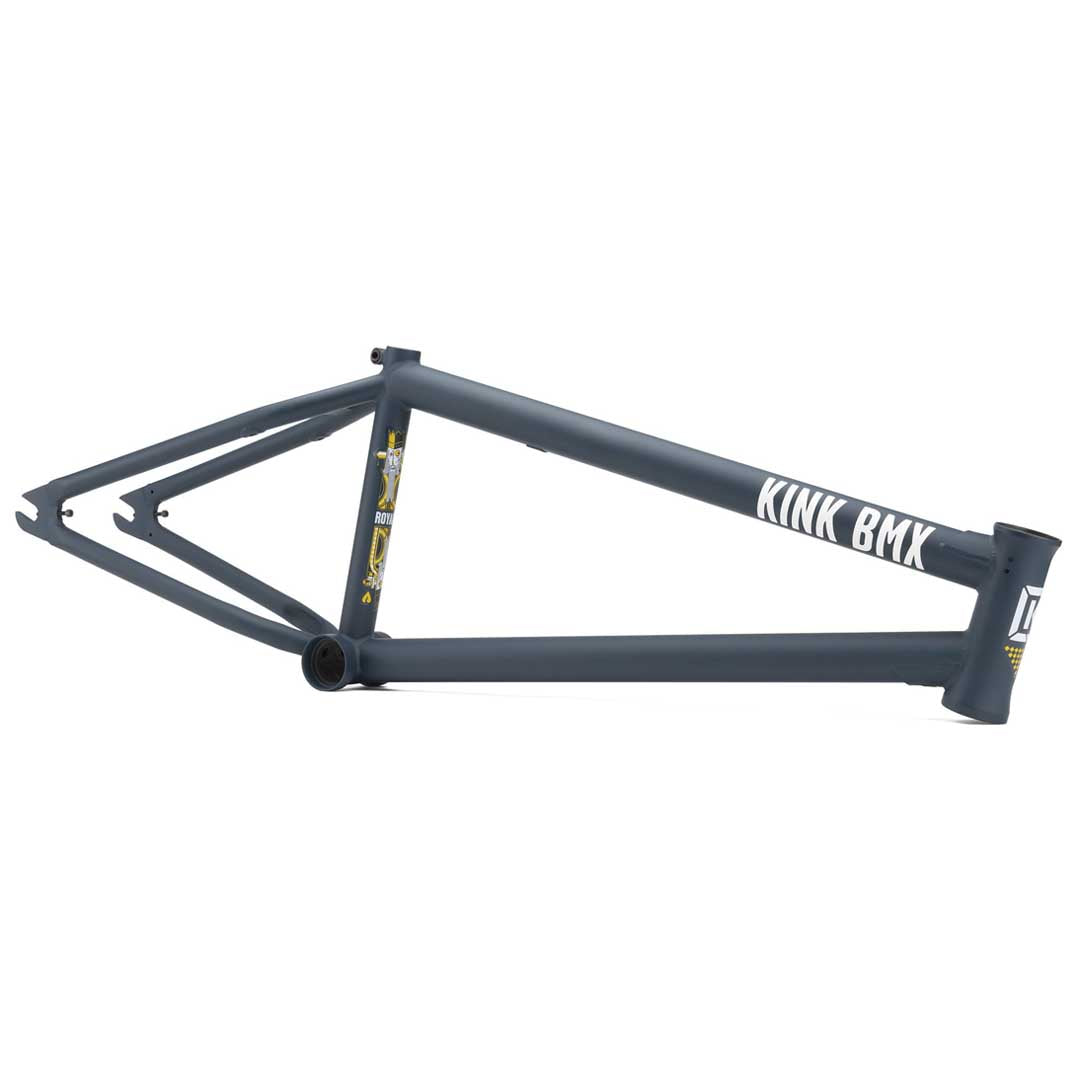

Kink Royale Frame - Velvet Blue
Complete bikes are shipped flat-packed and require professional assembly for the manufacturer warranty to remain valid. Parts and components are shipped as individual items — please check compatibility before purchase and install according to manufacturer instructions.
Need help choosing the right size?
Kink Royale Frame - Velvet Blue
All street, all day. The Royale frame features progressive geometry throughout the design with premium grade materials and craftsmanship to back them up. A 76-degree headtube angle and 12.5†chainstay length make the Royale frame compact and responsive, ideal for modern day street and plaza riding. 100% 4130 chromoly tubing and both toptube and downtube gussets provide a ton of strength and stiffness. Custom interior chainstay forming provides tire clearance up to 2.55†and the seatstay bridge features a brass badge inlay. This frame comes standard with an integrated seat post clamp, integrated chain tensioners, and removable brake lugs for those looking to install brakes (mount kit sold separately).
GEOMETRY
| Toptube Sizes | 20.5â€, 20.75â€, 21â€, 21.25†|
| Chainstay Length | 12.5" Slammed |
| Bottom Bracket Height | 11.7" |
| Standover Height | 9" |
| Headtube Angle | 76° |
| Seattube Angle | 71° |
| Headtube Height | 5" |
TECH SPEC
| Material | 100% 4130 Chromoly Tubing |
| Headtube | Integrated Campy Spec |
| Dropouts | Laser cut with Integrated Chain Tensioners |
| Bottom Bracket | Internally and Externally Machined Mid Size BB |
| Braking | Removable Through-Bolt Brake Mount System (Hardware Not Included) |
| Particulars |
Toptube and Downtube Gussets Integrated Seat Clamp Interior Chainstay Forming for 2.55†Tire Clearance CNC’d Seatstay Bridge with Kink Badge Inlay |
| Weight | 5lb 4oz (20.5") |
