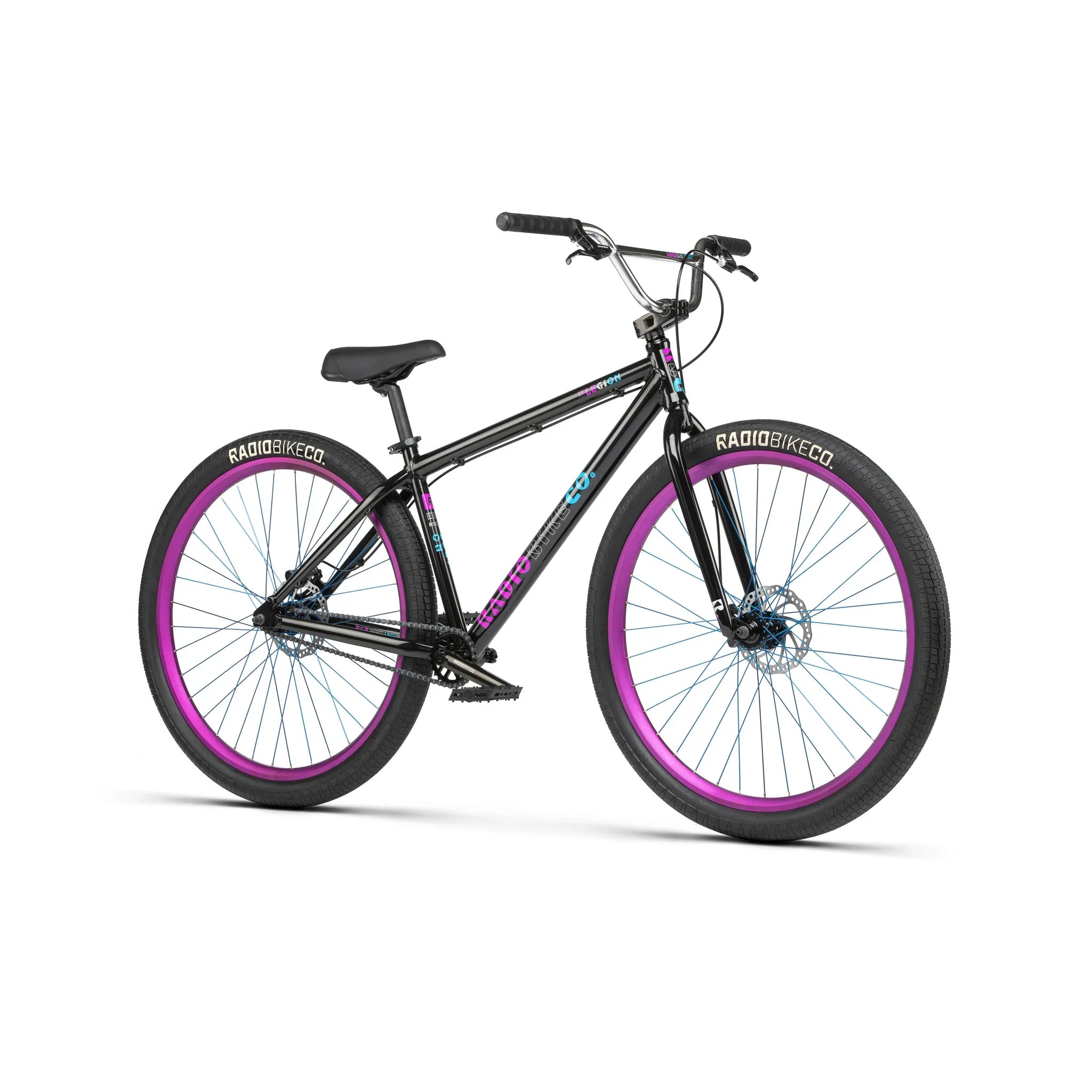

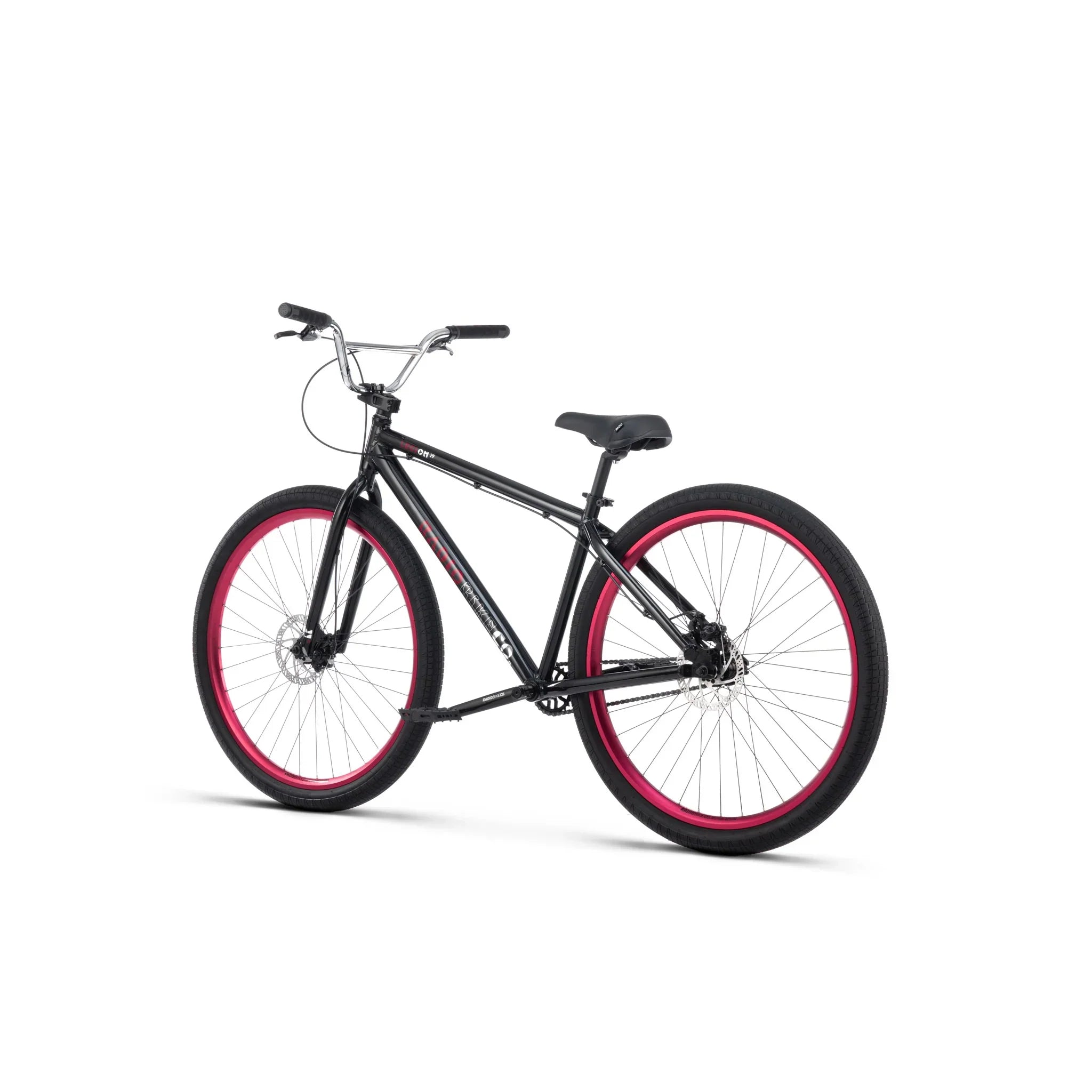

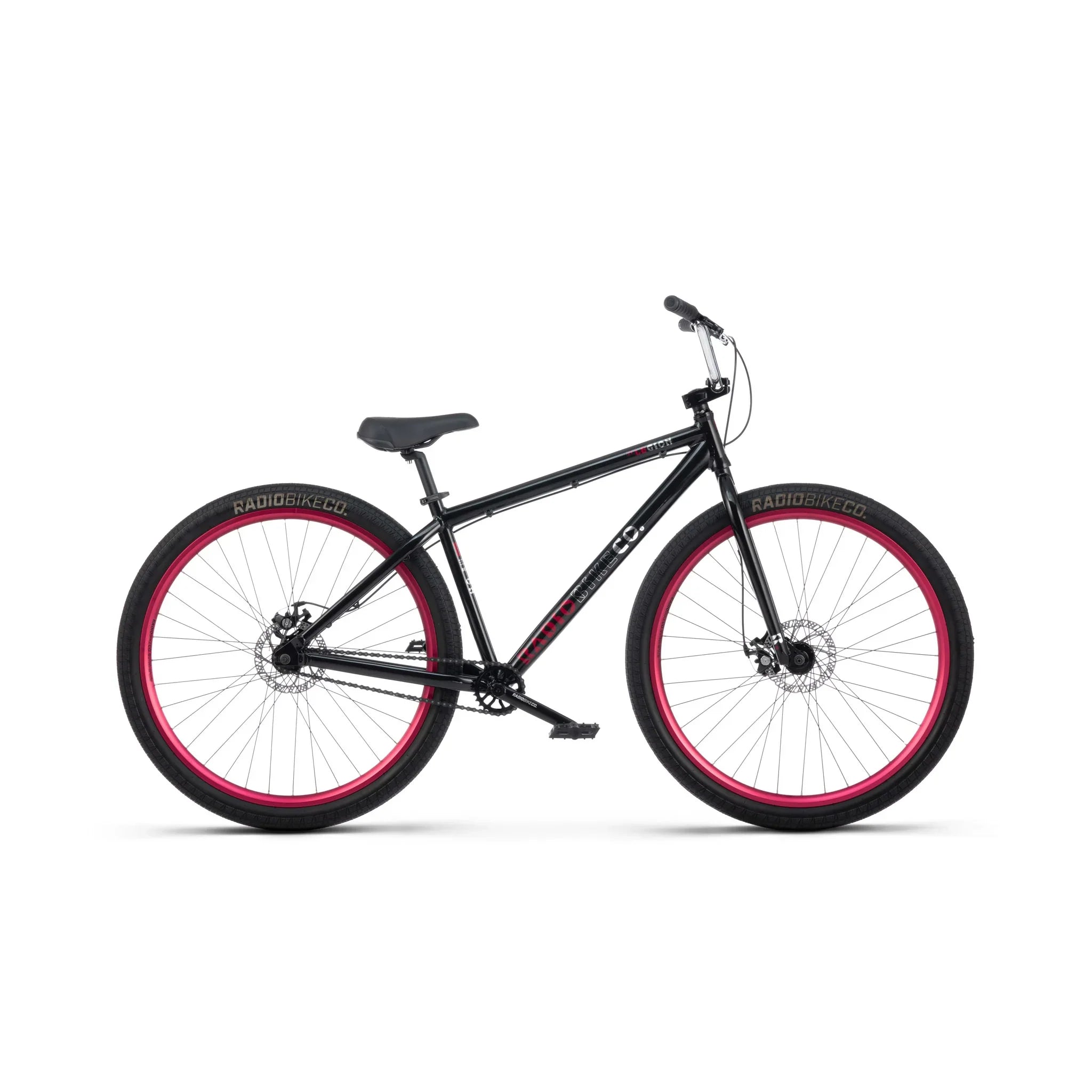

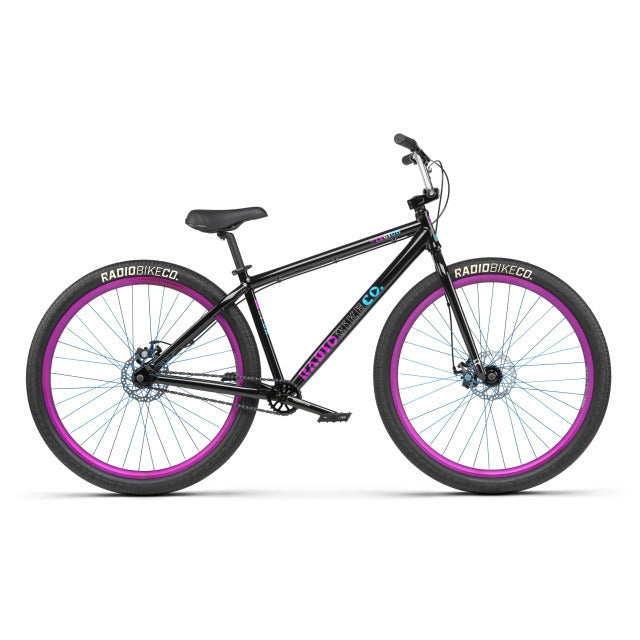

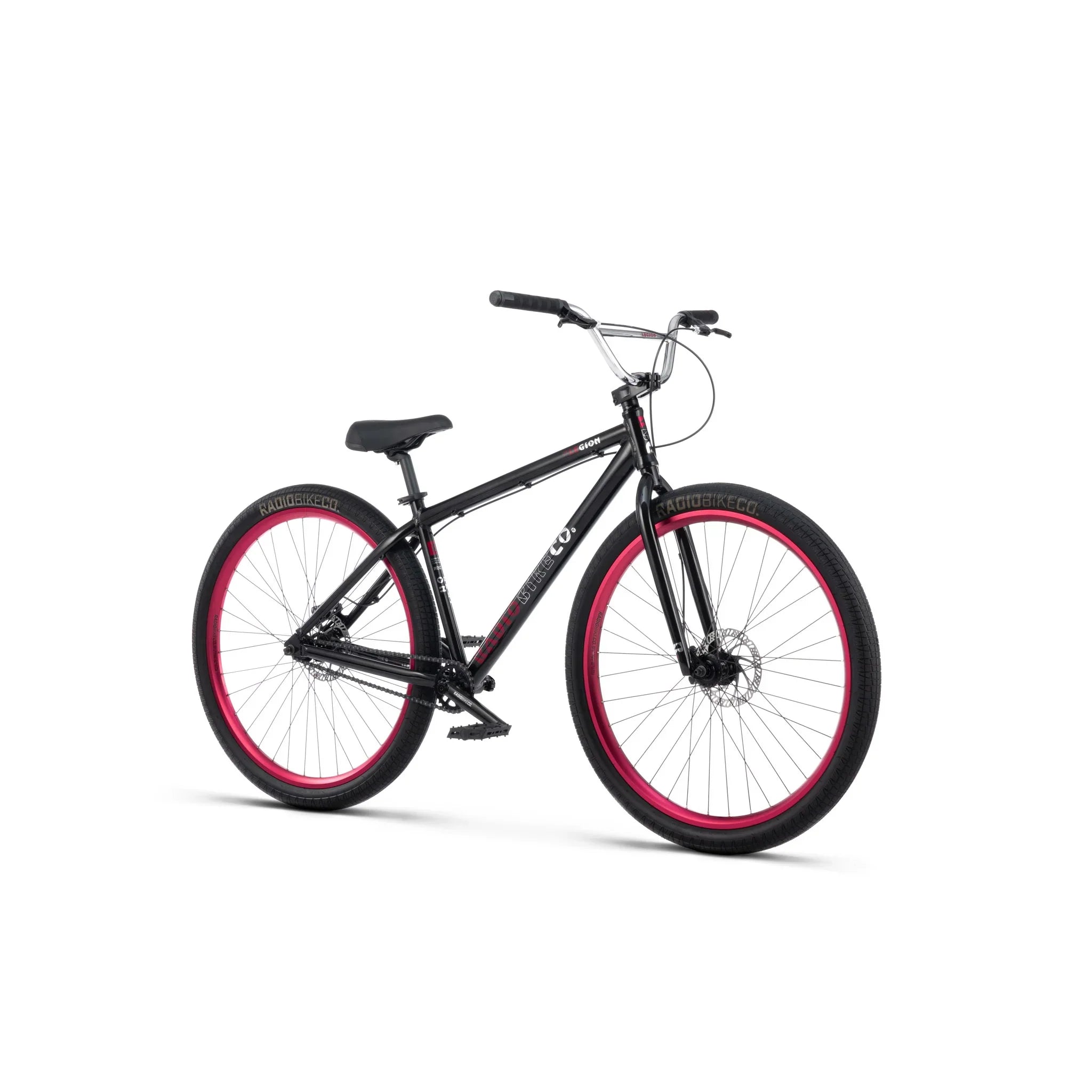

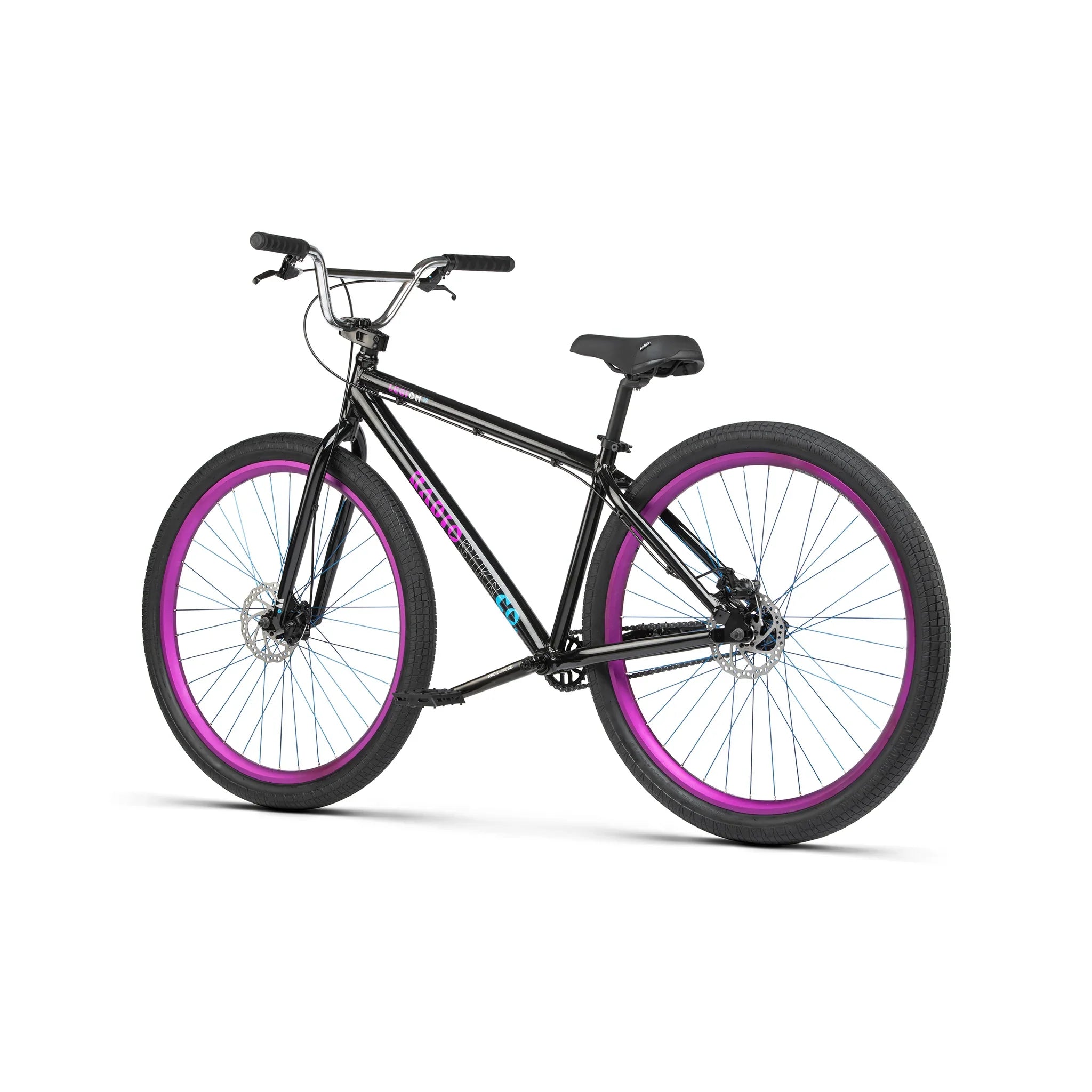

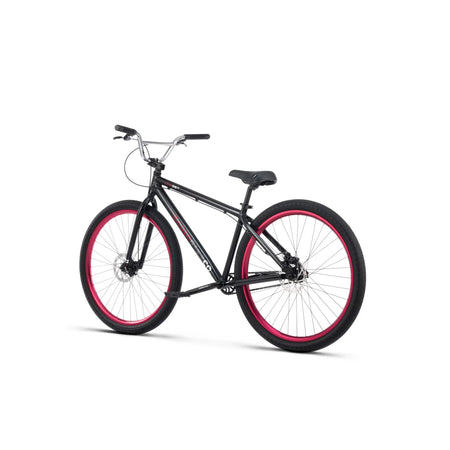

RADIO BIKES Legion 29 Complete Bike
Couldn't load pickup availability
Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!
Need help choosing the right size?
- FRAME: RADIO "LEGION 29" frame, 6061-T6 alloy
- FORK: RADIO "LEGION 29" fork, full crmo, 30mm offset
- HANDLEBAR: RADIO "LEGION" bar, full 4130 crmo
- GRIPS: RADIO "FREQUENCY XL" grips, flangeless, 160mm
- STEM: SALT "COMP" topload stem, 50mm reach
- HEADSET: FSA "NO.28" A-headset
- BRAKE LEVER: TEKTRO "RS-360A"lever, front & rear
- BRAKE: TEKTRO "ARIES" mechanical disc brake, 160mm rotor, front & rear
- CRANK: RADIO "PRO" 3pc crank, tubular, crmo, 175mm, 8 spline
- BB: RADIO "BSA19" bb set, sealed bearing
- PEDALS: RADIO "PRO" pedals, nylon/fiberglass
- CHAIN: SALT "AM" chain, WZ1 type
- SPROCKET: RADIO "LEGION" sprocket, alloy, 26t
- DRIVER: cassette driver, 12t, sealed bearing
- FRONT HUB: RADIO "PRO-DJ" disc hub, alloy, sealed, 3/8"s crmo axle, 36h
- REAR HUB: RADIO "PRO" disc hub, alloy, sealed, 12t, 3/8"s axle, 36h
- FRONT RIM: RADIO "DB35" rim, double wall
- REAR RIM: RADIO "DB35" rim, double wall
- SEAT: RADIO "LEGION" railed seat
- SEAT POST: RADIO "SP228" seat post, micro-adjust, alloy
- SEAT CLAMP: RADIO "QUICK RELEASE" seat clamp, alloy
- TIRES: RADIO "LEGION 29" tires, 2.3", front & rear
Weight: 15.04kg / 33.15lbs
Frame Geometry:
| Top Tube Length | 23.5" |
| Chain Stay Length | 18" |
| Head Tube Angle | 71° |
| Seat Tube Angle | 71° |
| Bottom Bracket Height | 65mm drop |
| Standover Height | seat tube length: 430mm |
Handlebar Geometry:
| Rise | 6.1" |
| Width | 30" |
| Backsweep | 10° |
| Upsweep | 3° |
