RADIO BIKES MTB Icarus Frame 26"
Couldn't load pickup availability
Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!
Need help choosing the right size?

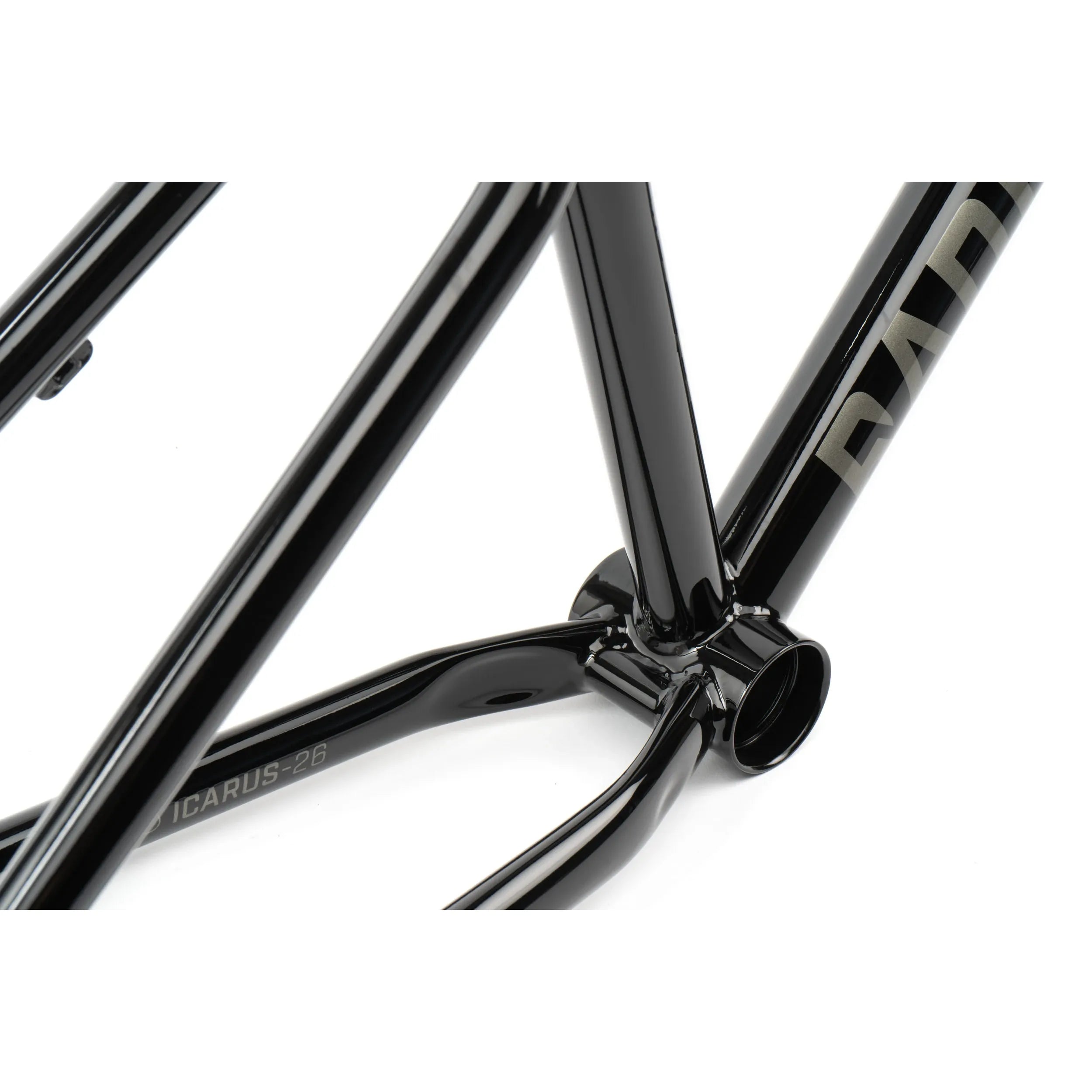

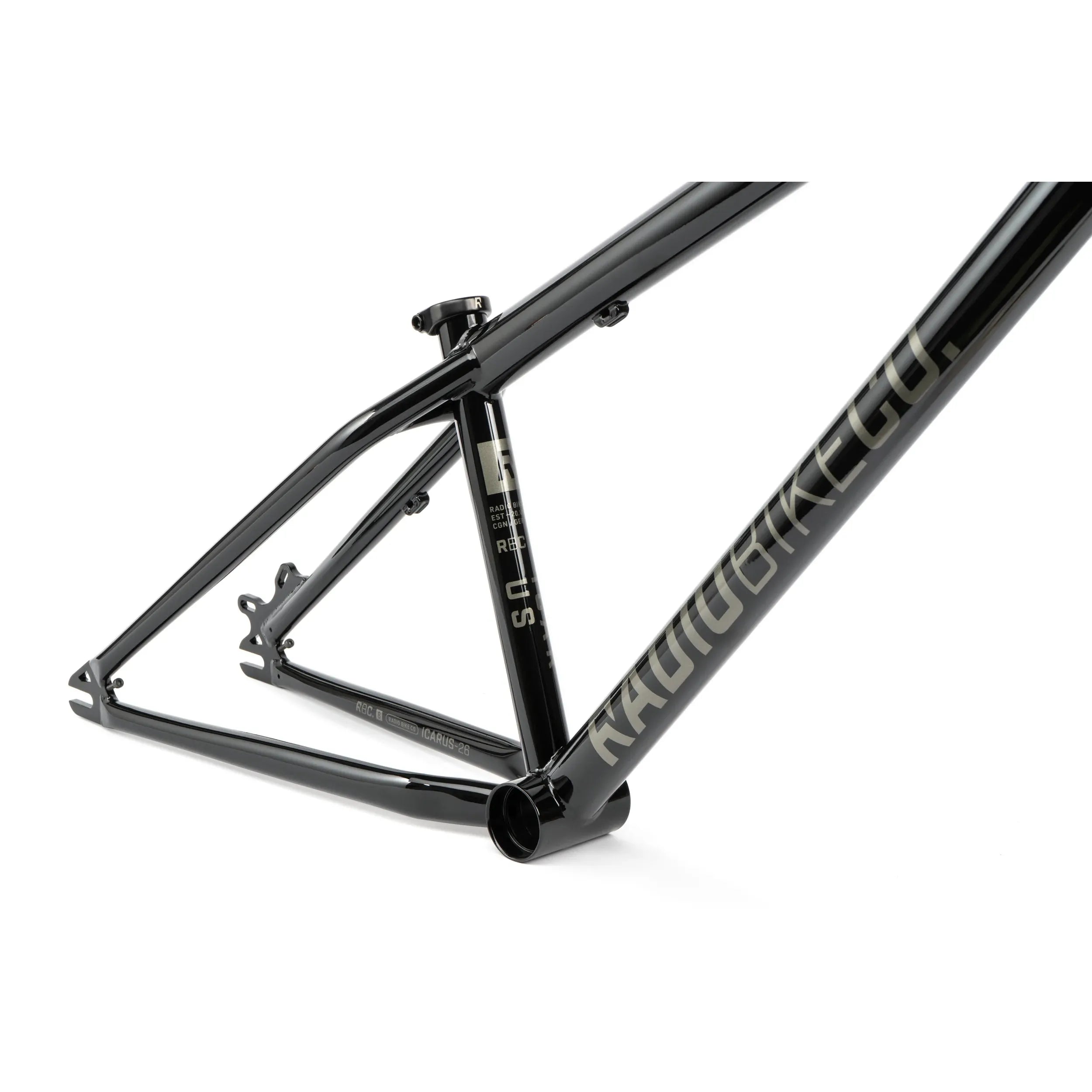

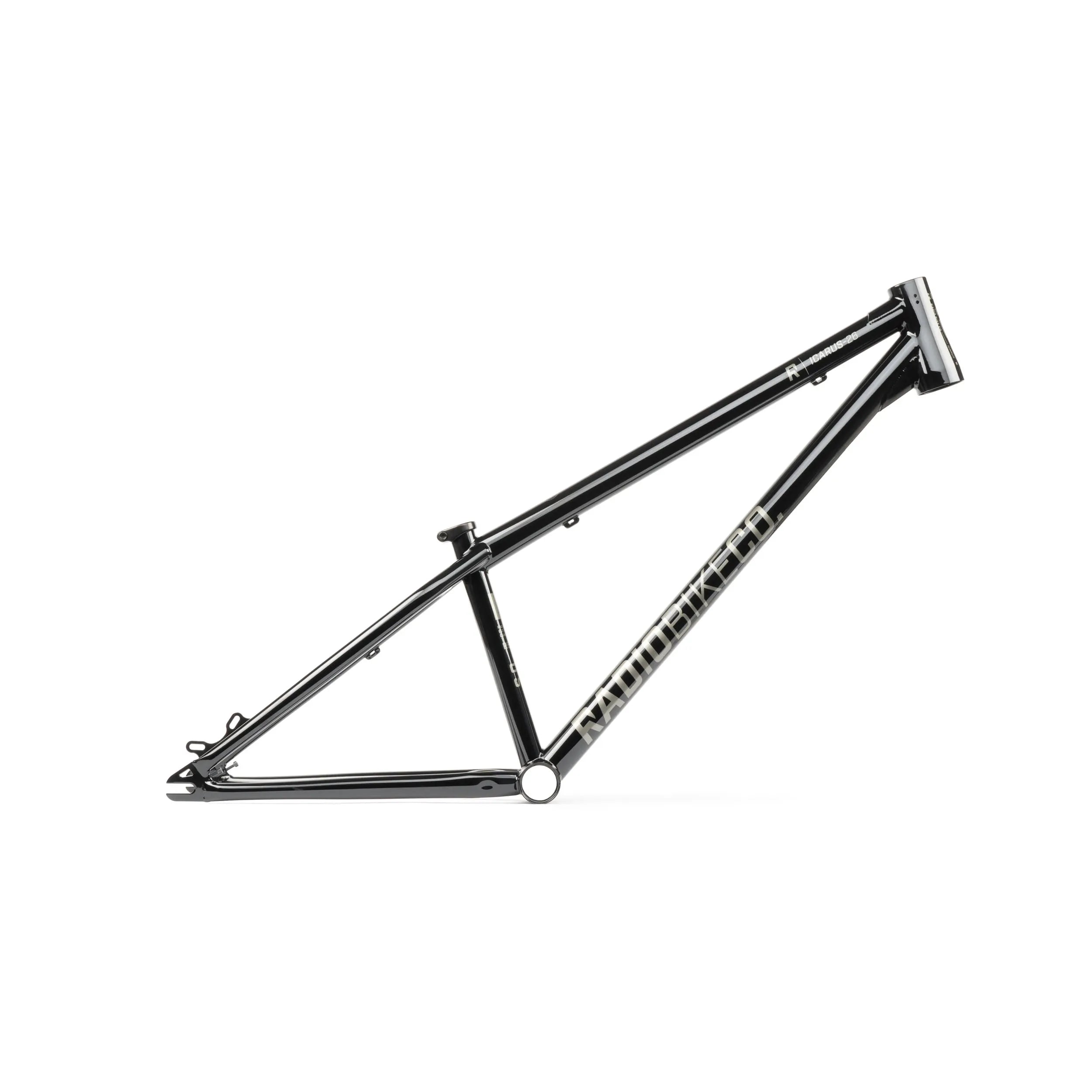

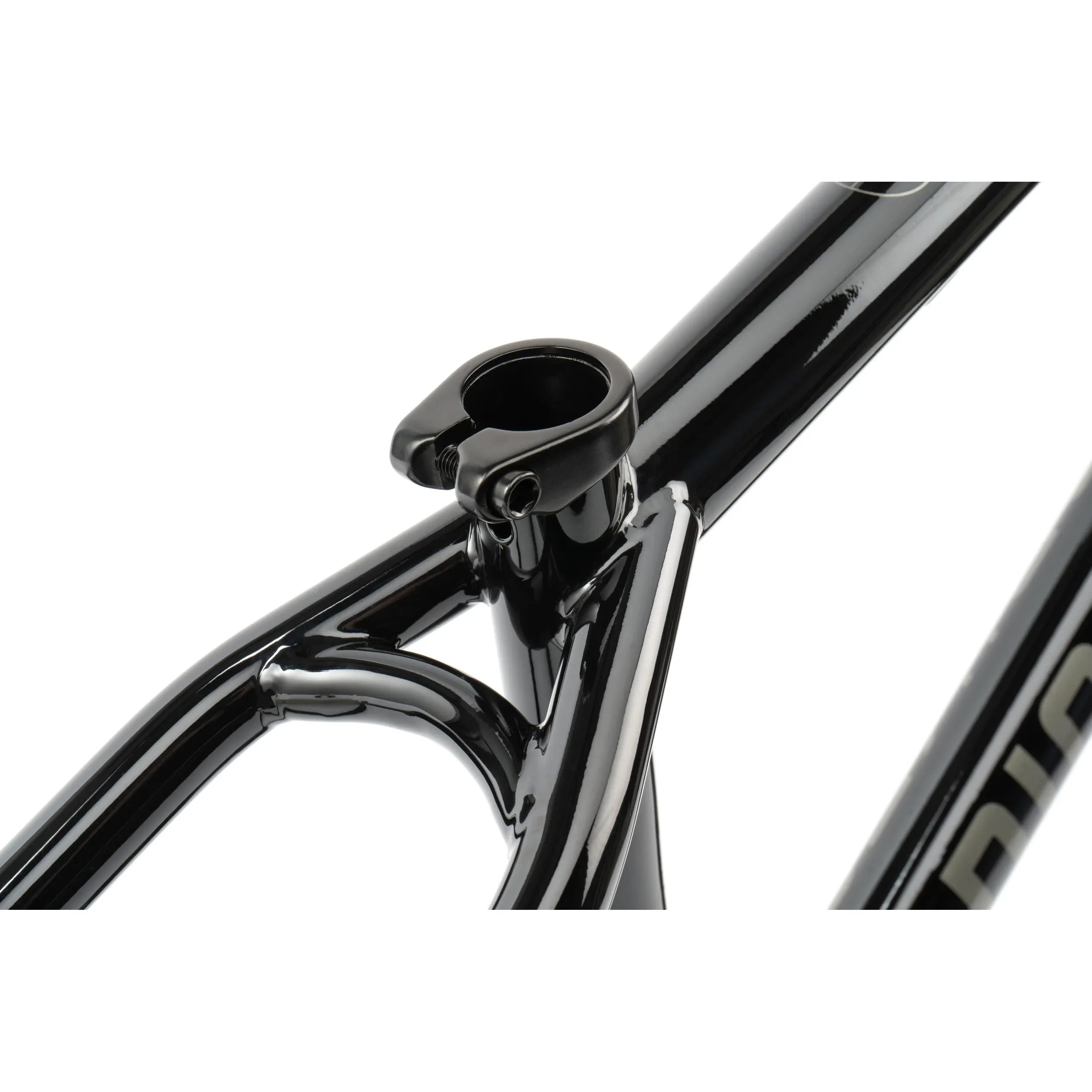

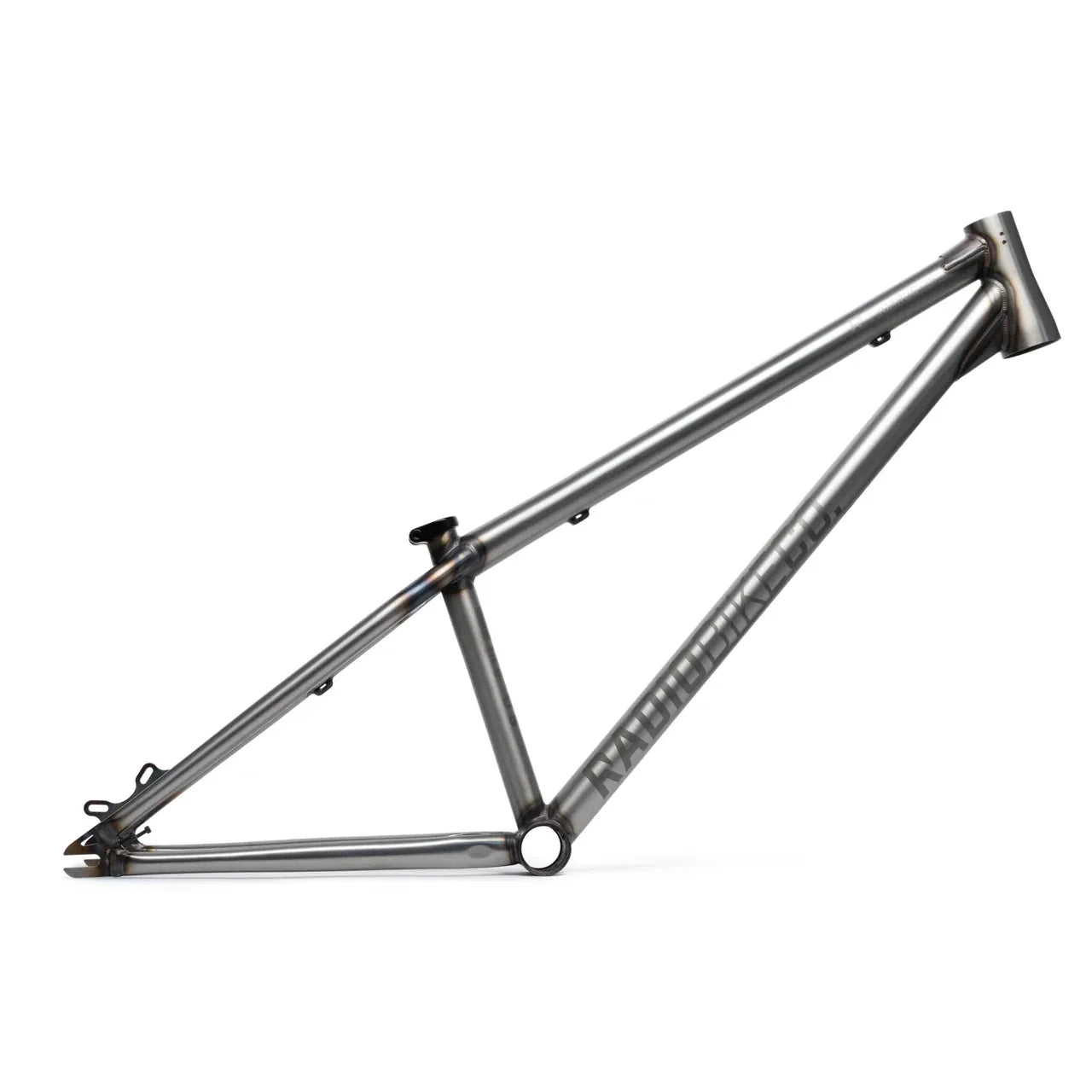

A natural evolution of the legendary Asura Frame, the ICARUS is a fully heat-treated Chromoly 26″ frame made for dirt, skatepark and street riding. Designed & developed over 3 years with MTB street pioneer Niklas Tilk, the ICARUS utilizes a brand new tubing construction as well as handy features such as a Mid Sized BB style bottom bracket, rotor tabs, beefier dropouts with chain tensioners, greater compatibility for suspension forks, and oval/tapered stays for maximum tire/sprocket clearance. The short/snappy geometry and reinforced tubing constriction make the ICARUS the ultimate do-it-all 26″ machine. If you need any proof of what the ICARUS is capable of just take a look at Niklas Tilk’s Radio video projects. Say no more.
Geometry
- Actual Top Tube Length: 22.3″ (566mm) and 22.8″ (578mm)
- Effective Top Tube Length: 22.7″ (576mm) and 23.2″ (590mm)
- Chainstay Length: 14.8″ (378mm)
- Standover Height: 11.7″ (298mm)
- Head Tube Angle: 71.5°
- Seat Tube Angle: 72.5°
- Bottom Bracket Height: 4mm rise
Features
- Tubing: seamless 4130 crmo tubing, heat-treated headtube, bottom bracket, and dropouts

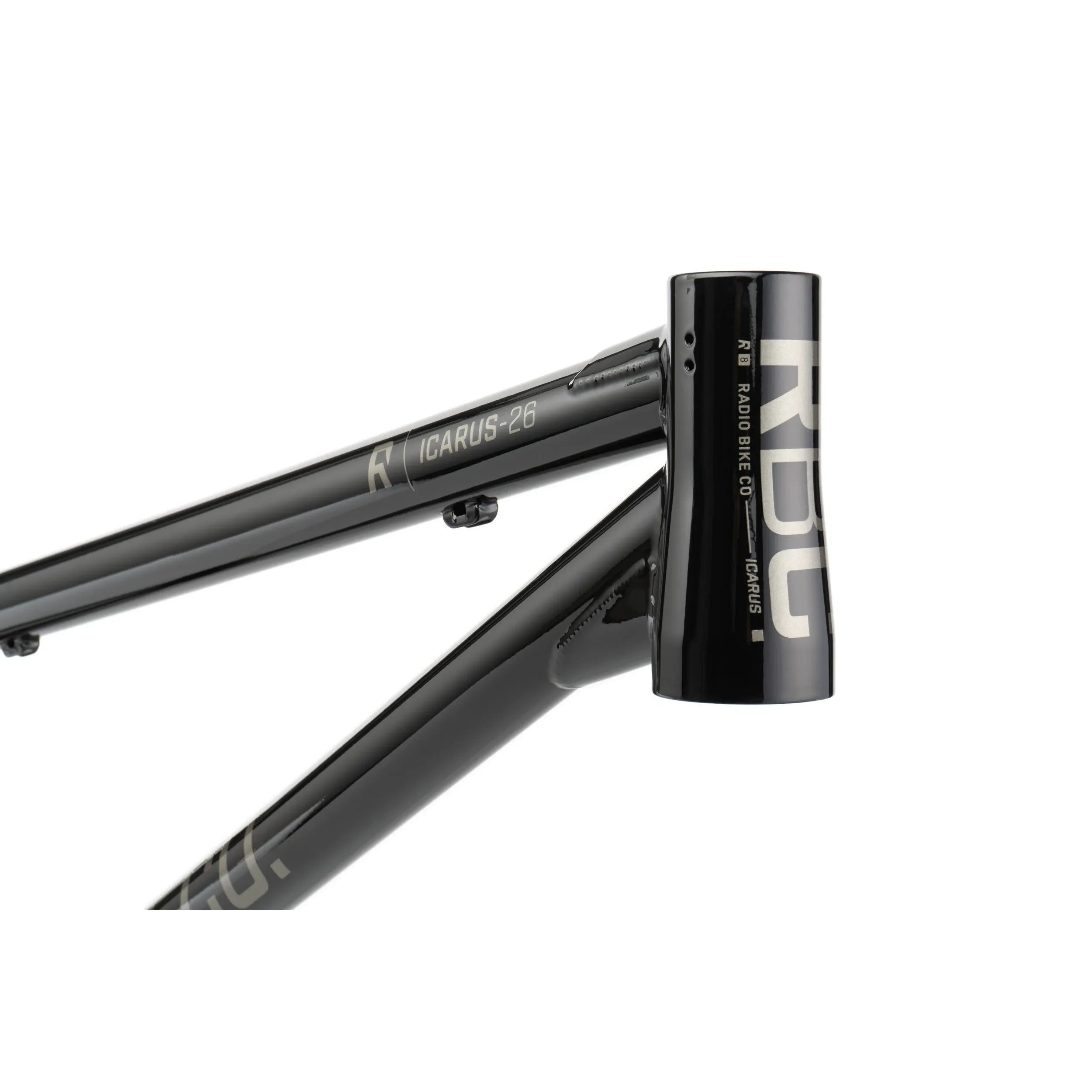

- Headtube Size: cnc machined and heat-treated, 1 1/8” to 1.5” tapered, 120mm tall with gyro tabs
- Headset: Tapered Integrated Headset (1.5" / 1 1/8") IS42 & IS52
- Bottom Bracket: cnc machined and heat-treated MID bb, width: 74mm

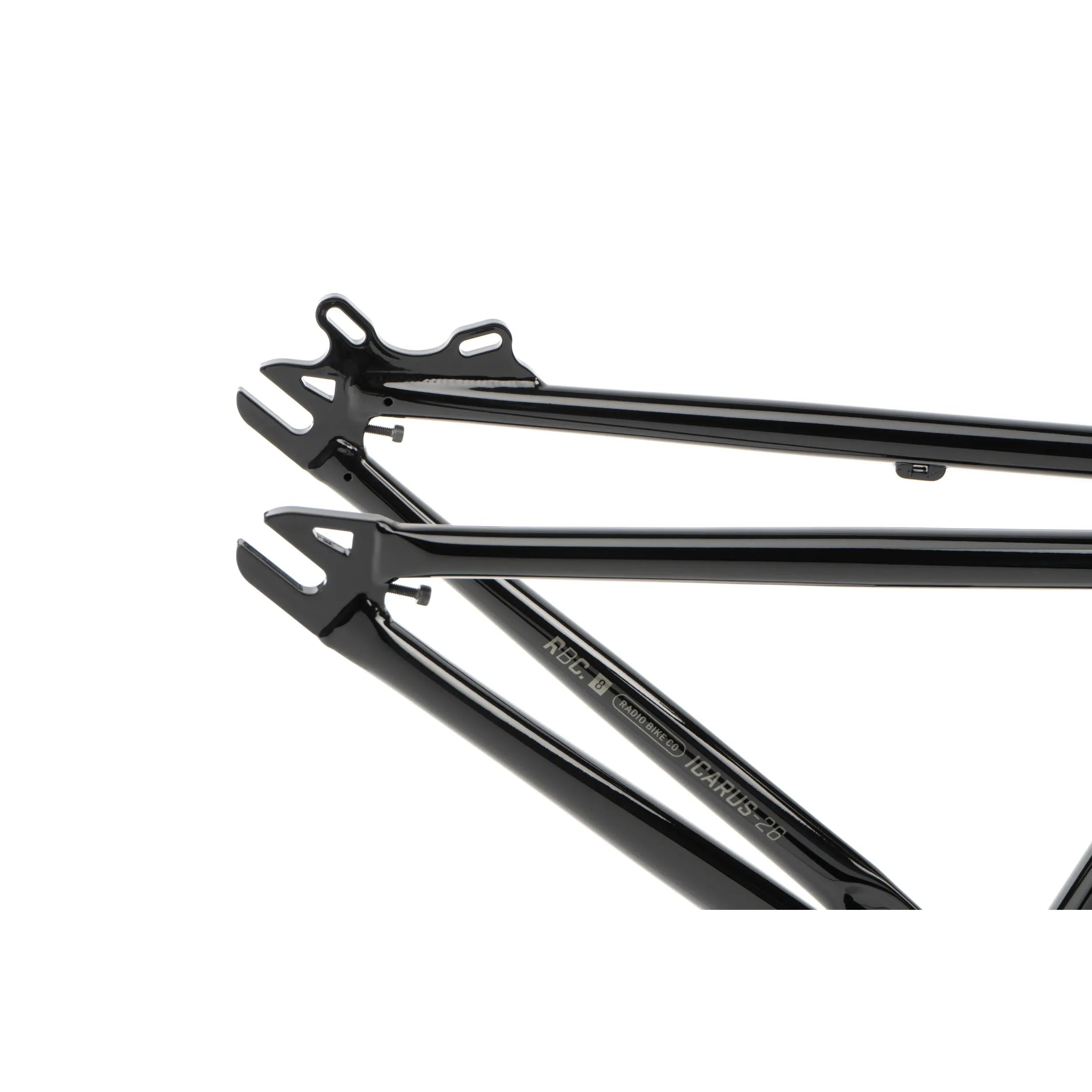

- Dropouts: cnc machined and heat-treated, 135mm x 10mm, 6mm thick, chaintensioner bolts, IS disc brake mount
- Weight: 2.93kg / 6.49lbs (22.8″)
