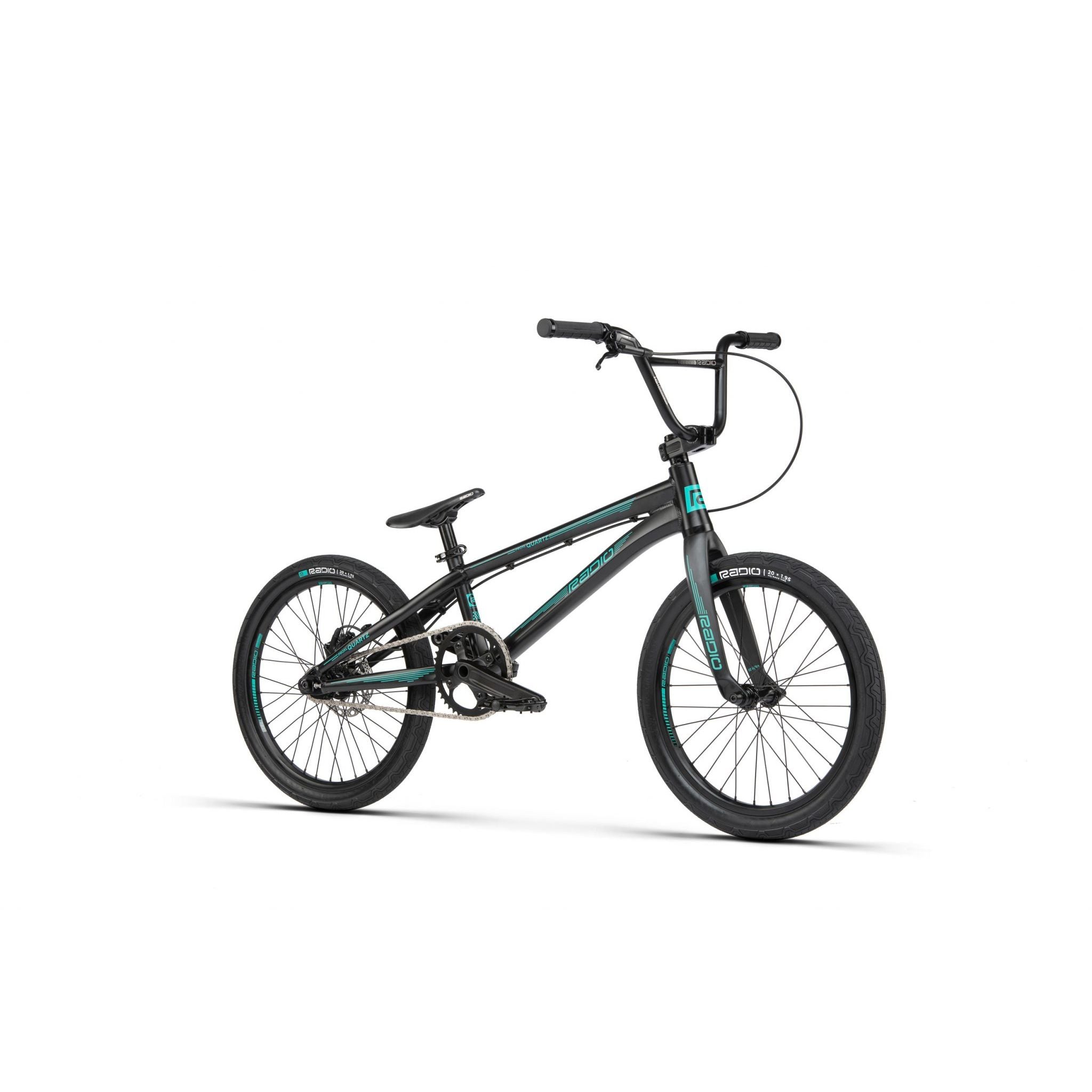

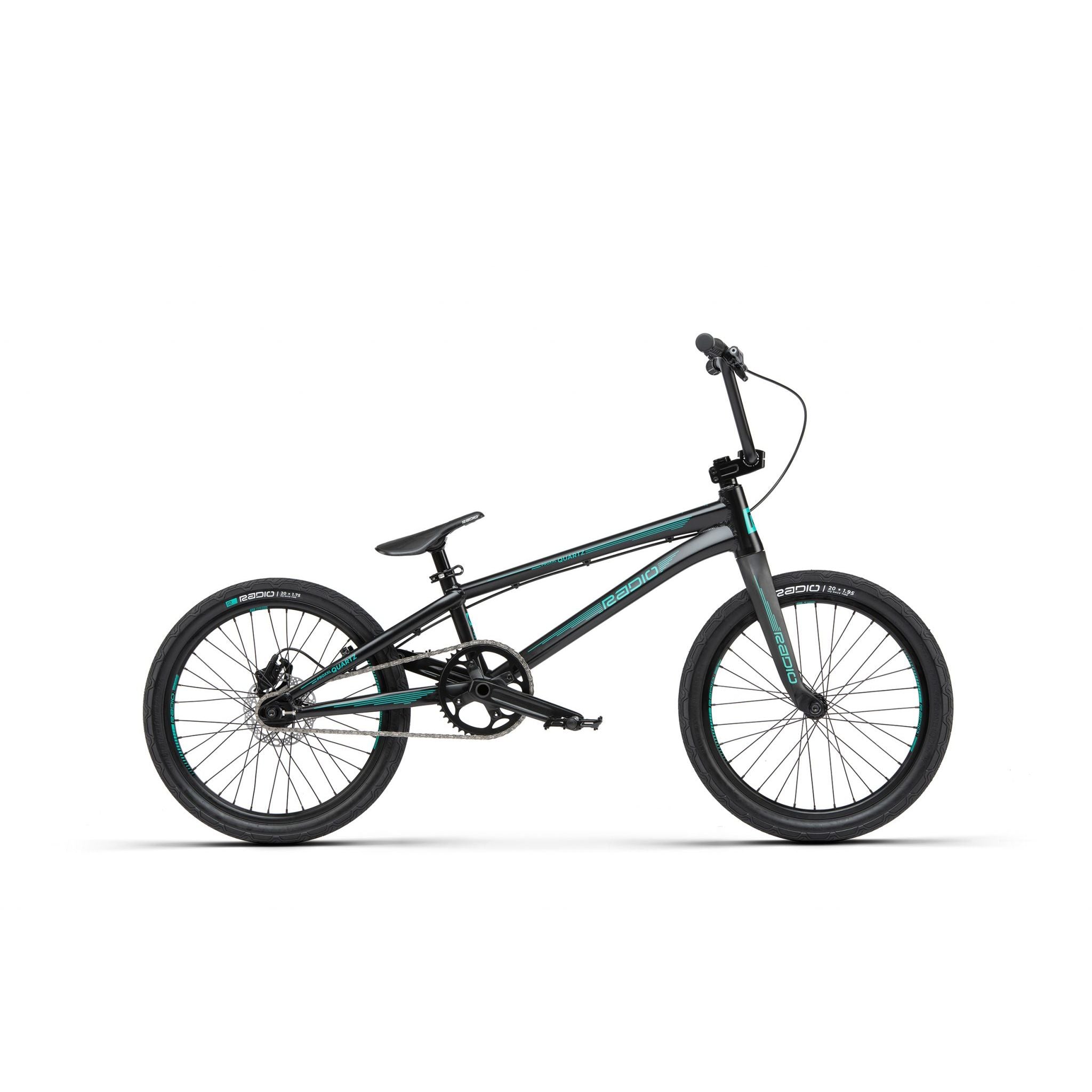

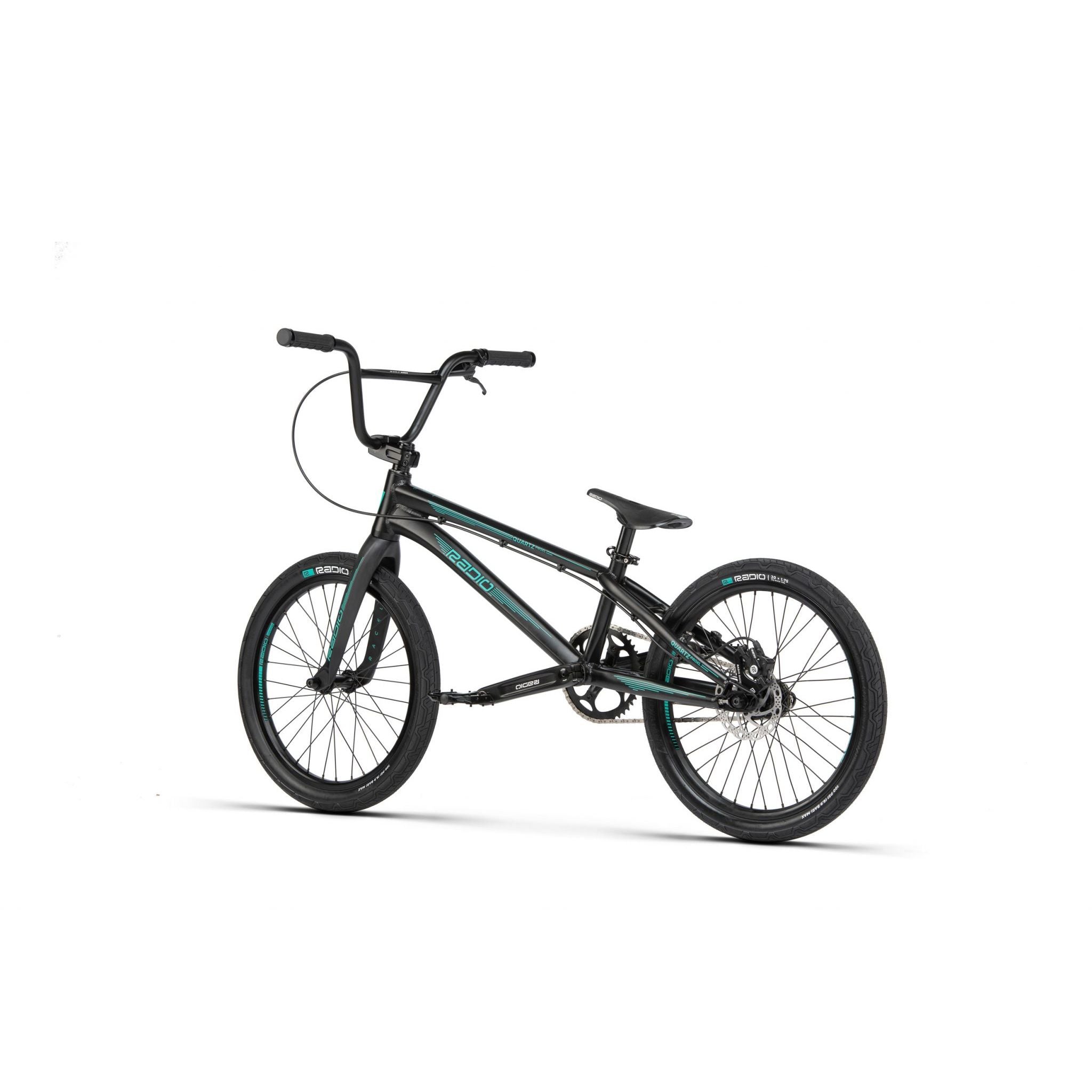

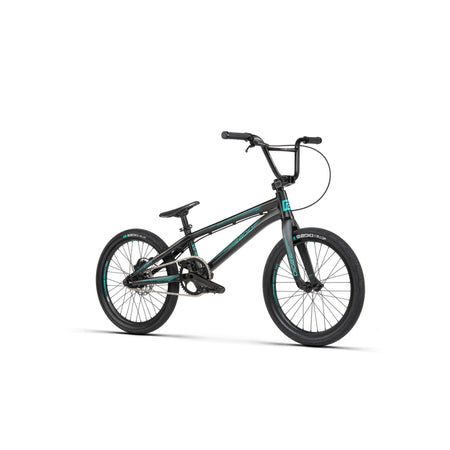

RADIO BIKES Race Quartz Pro Complete Bike

• FRAME: RADIO RACELINE "QUARTZ DISC" frame, lightweight hydroformed 6061-T6 alloy, tapered headtube, sliding forged dropouts, with int. chaintensioners, flatmount disc brake
• FORK: RADIO RACELINE "SOLAR" carbon fork, 1-1/8" - 1.5" tapered steerer, 32mm offset, inc. 10mm adaptors
• HANDLEBAR: RADIO RACELINE "NEON PRO 7.5 / 8 / 8.5" hydroformed bar, multiple butted & heattreated crmo
• GRIPS: RADIO RACELINE "XENON" grips, diamond knurling, clamp on grip, 139mm length
• STEM: RADIO RACELINE "XENON PRO" toploader stem, ext. 53mm, cold forged/cnc alloy
• HEADSET: RADIO RACELINE "PRO" integrated headset, sealed, threadless, 1-1/8" - 1.5"
• BRAKE LEVER: PROMAX "F1" 2 finger lever for hydraulic disc brake rear
• BRAKE: PROMAX "F1" hydraulic disc brake, 120mm rotor, rear, flatmount
• CRANK: RADIO RACELINE, Xenon Pro, 2pc crank, cold forged/cnc, alloy, 175mm / 180mm length, 24mm spindle
• BB: RADIO RACELINE "BSA24" bb set, external bearing cups, cnc machined, sealed
• PEDALS: RADIO RACELINE "XENON SLIM" pedal, alloy
• CHAIN: KMC "Z1eHX" chain, 1/2" x 3/32"
• SPROCKET: RADIO RACELINE "XENON PRO" sprocket, 43T / 44T, alloy
• DRIVER: RADIO RACELINE driver, 16T, 1/2"- 3/32", sealed cassette
• FRONT HUB: RADIO RACELINE "TURBINE" front hub, alloy cnc, fully sealed, 32h / 36h, 3/8" female crmo axle
• REAR HUB: RADIO RACELINE "TURBINE" rear hub, alloy cnc, fully sealed, 32h / 36h, disc brake cassette, 3/8" female crmo axle
• FRONT RIM: RADIO RACELINE "ARGON PRO" rim, flash welded, 32 / 36h, tubeless ready, alloy
• REAR RIM: RADIO RACELINE "ARGON PRO" rim, flash welded, 32 / 36h, tubeless ready, alloy
• SEAT: RADIO RACELINE "XENON" pivotal seat, no padding
• SEAT POST: RADIO RACELINE pivotal seat post, 27.2mm, alloy
• SEAT CLAMP: RADIO RACELINE "XENON" seat clamp, quick-release, alloy
• TIRES: RADIO RACELINE "OXYGEN" tires, foldable, tubeless ready, front: 20" x 1.95" and rear: 20" x 1.75"

Weight
L: 9.2kg / 20.28lbs
XL: 9.4kg / 20.74lbs
XXL: 9.5kg / 20.9lbs

Frame Geometry:

Handlebar Geometry:
