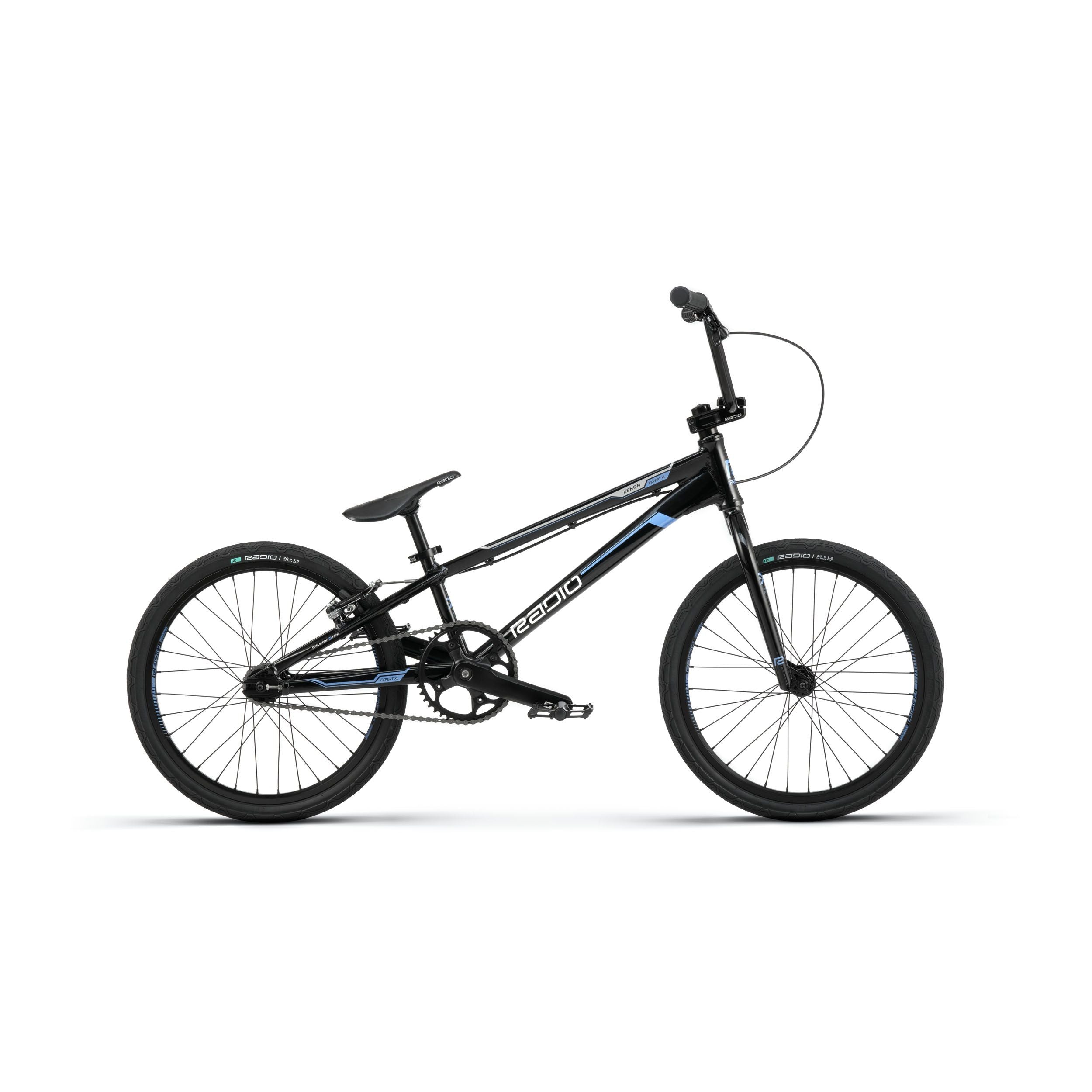

RADIO BIKES Race Xenon Expert XL Complete Bike
Couldn't load pickup availability
Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!
Need help choosing the right size?
- FRAME: hydroformed 6061-T6 alloy frame, forged & disc brake mount ready dropouts, with int. chaintensioners
- FORK: crmo fork, 1-1/8" butted steerer, crmo fork legs, 23mm offset
- HANDLEBAR: 6061-T6 alloy bar
- GRIPS: RADIO RACELINE "XENON" grips, diamond knurling, clamp on grip, 139mm length

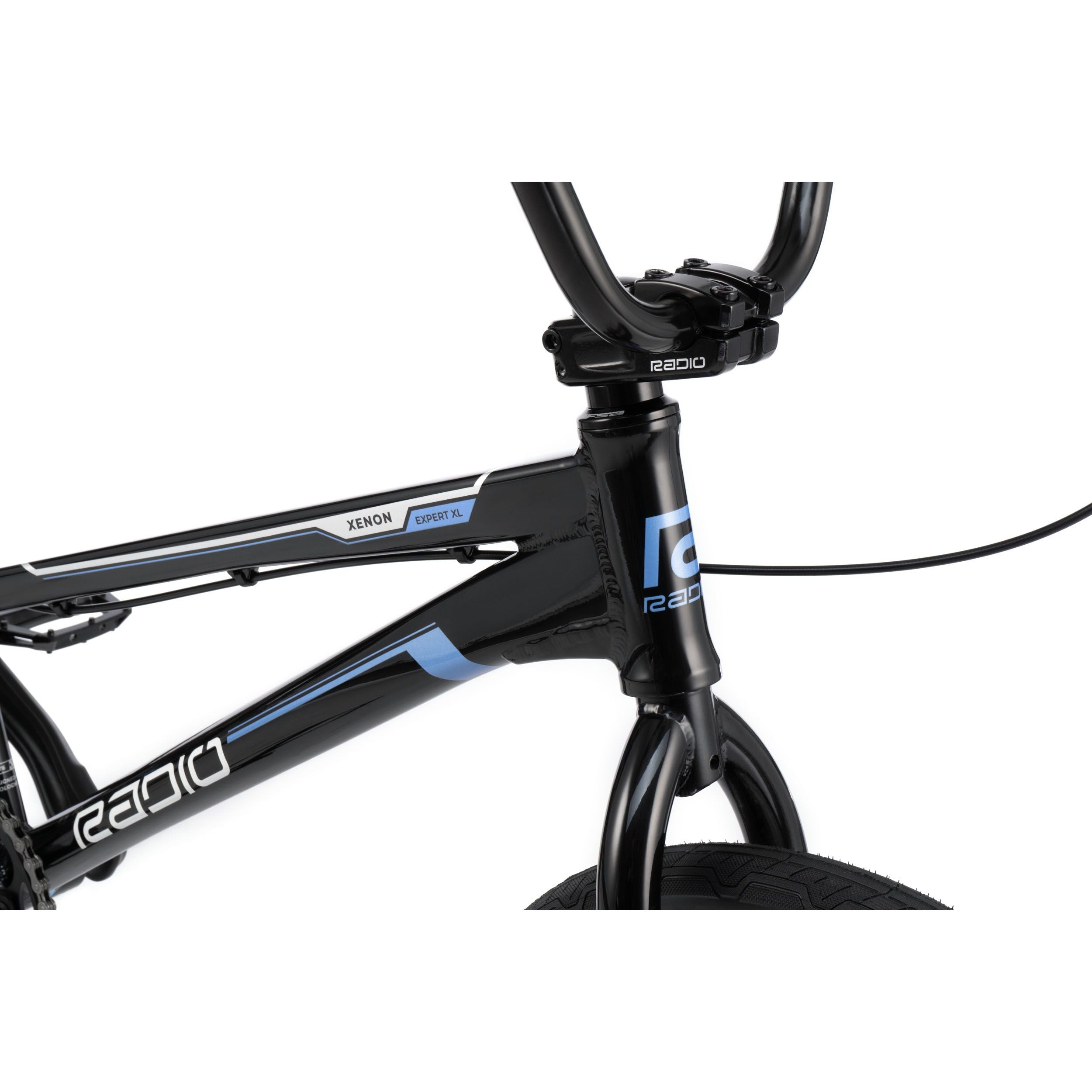

- STEM: RADIO RACELINE "COBALT" toploader stem, ext. 50mm, alloy
- HEADSET: FSA "No.28" integrated headset, sealed, 1-1/8"
- BRAKE LEVER: PROMAX "XL-378" brake lever, rear
- BRAKE: PROMAX "MV-85" brake, rear

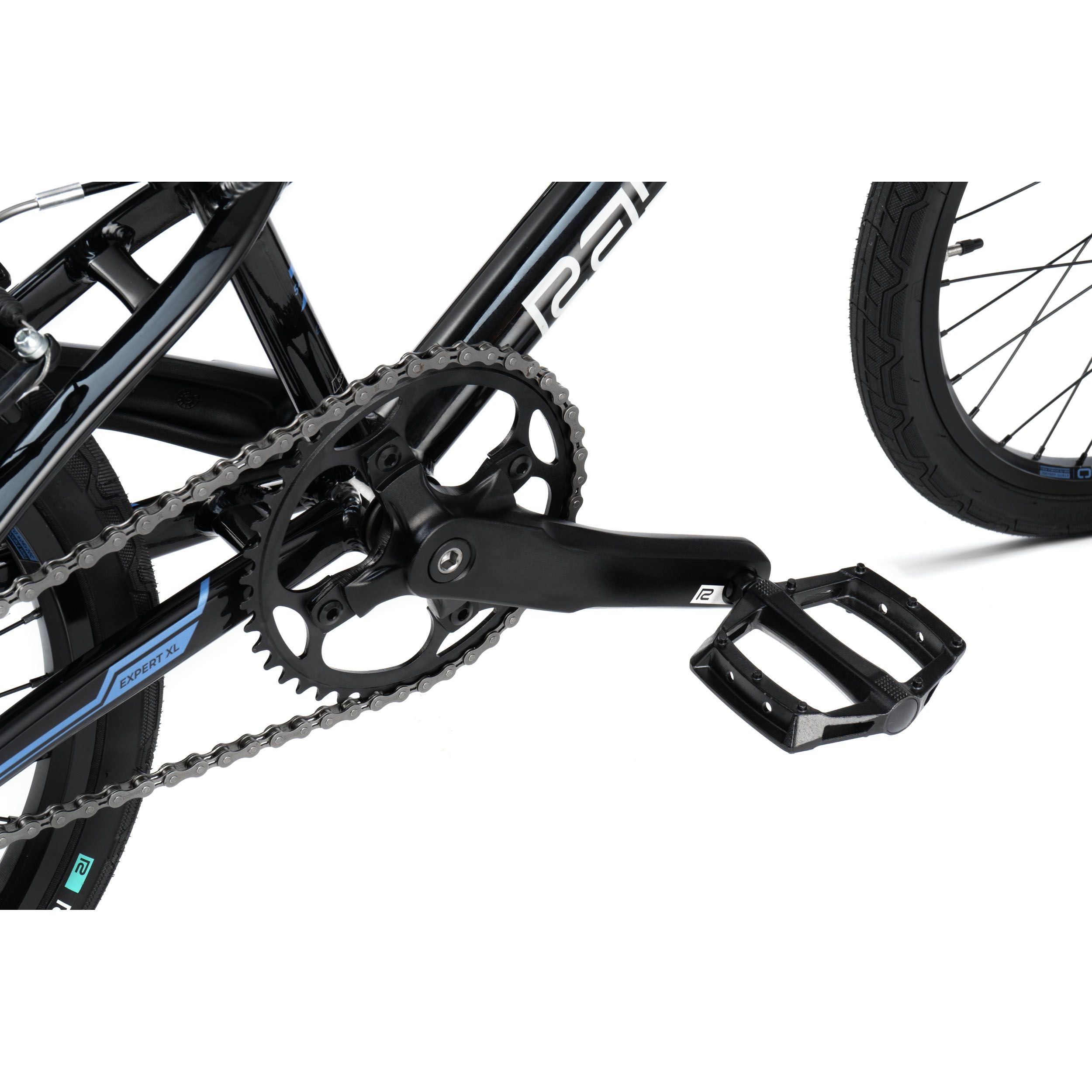

- CRANK: RADIO RACELINE "XENON" 3pc crank, forged alloy, cnc machined, 170mm length
- BB: RADIO RACELINE BB set, BSA square taper, sealed
- PEDALS: RADIO RACELINE "XENON SLIM" pedal, alloy
- CHAIN: KMC "Z6" chain, 1/2" x 3/32"
- SPROCKET: RADIO RACELINE sprocket, 42T, alloy
- DRIVER: RADIO RACELINE driver, 16T, 1/2"- 3/32", sealed cassette

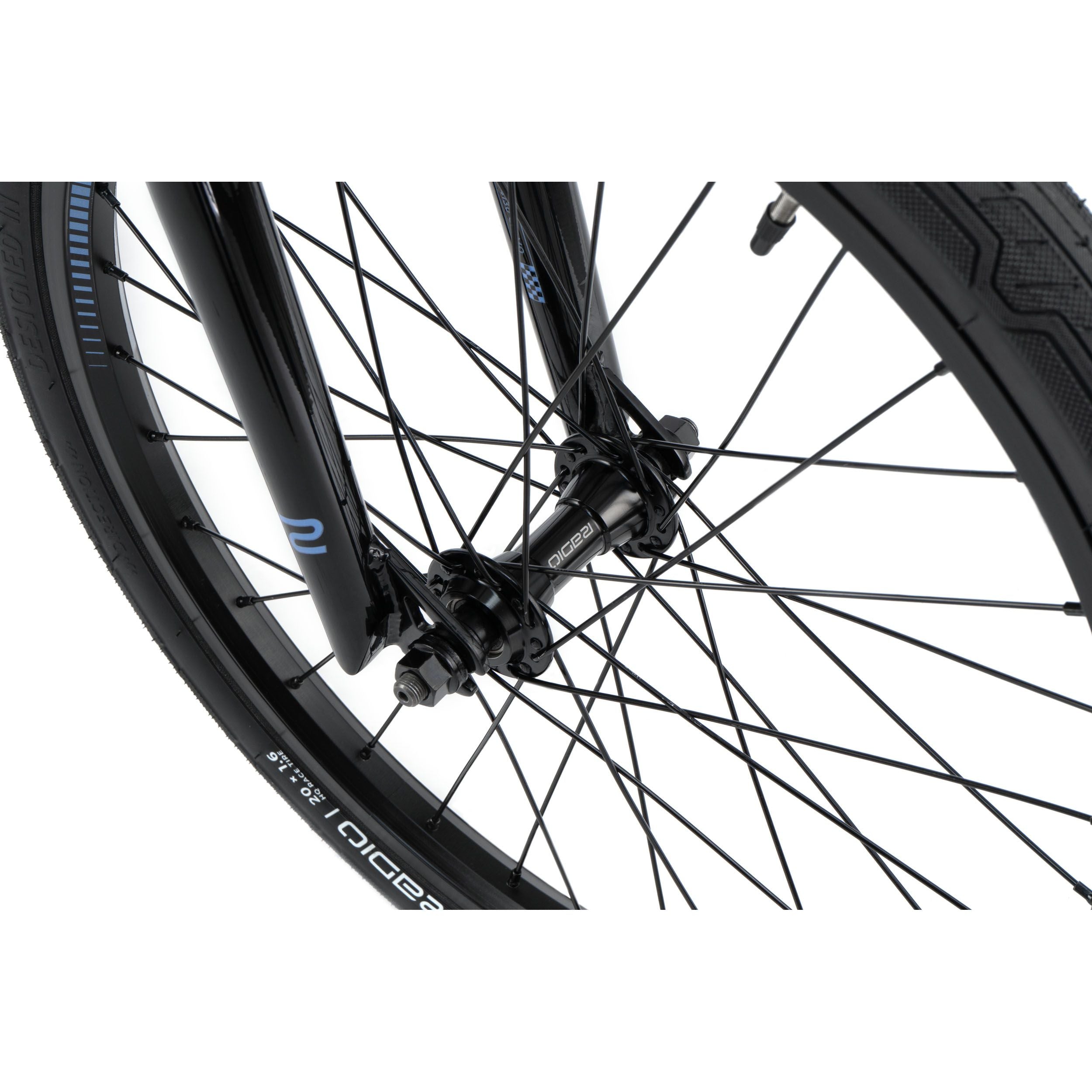

- FRONT HUB: RADIO RACELINE "XENON" front hub, alloy cnc, fully sealed, 32h, 3/8" crmo axle

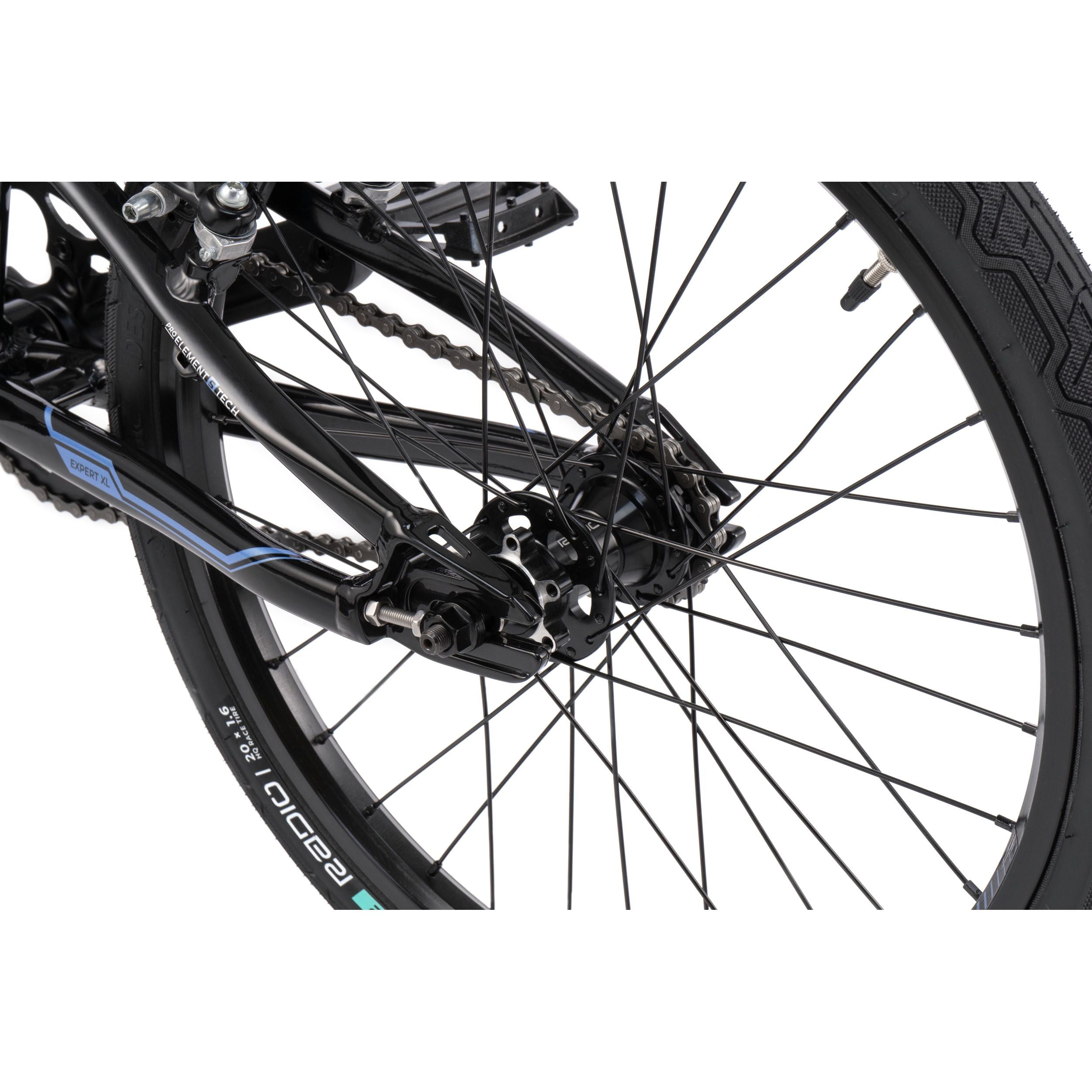

- REAR HUB: RADIO RACELINE "XENON" rear hub, alloy cnc, fully sealed, 32h, disc brake cassette, 3/8" crmo axle
- FRONT RIM: RADIO RACELINE "CLIPPER EXPERT" rim, pinned joint, 32h, alloy
- REAR RIM: RADIO RACELINE "CLIPPER EXPERT" rim, pinned joint, 32h, alloy

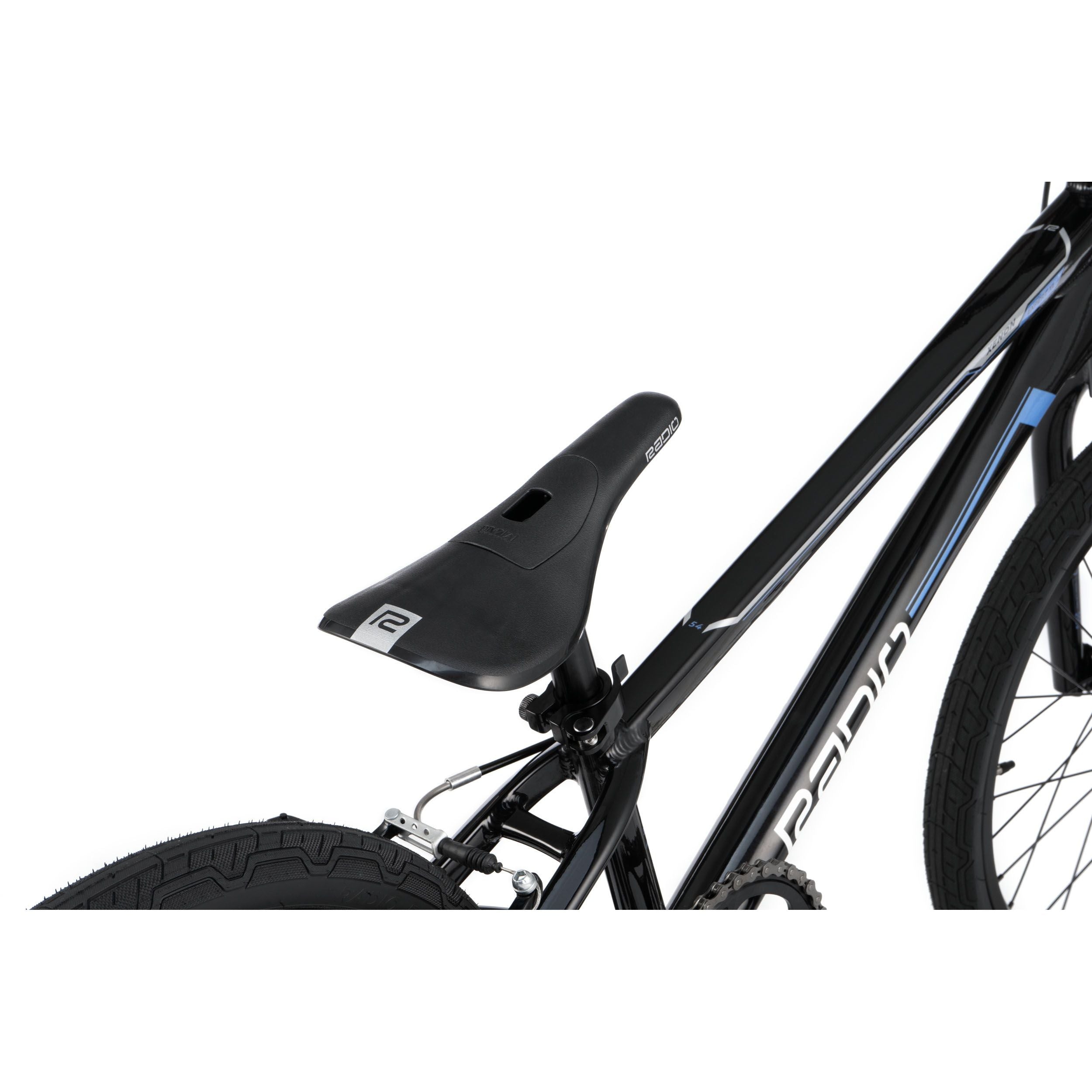

- SEAT: RADIO RACELINE "XENON" pivotal seat, no padding
- SEAT POST: RADIO RACELINE seat post, 22.2mm, alloy
- SEAT CLAMP: RADIO RACELINE "XENON" seat post, quick-release, alloy
- TIRES: RADIO RACELINE "OXYGEN" tires, 20" x 1.6"
Weight: 9.09kg / 19.86lbs
Frame Geometry:
| Top Tube Length | 19.5" / 20.5" |
| Chain Stay Length | 13.8" |
| Head Tube Angle | 73.5° |
| Seat Tube Angle | 71° |
| Bottom Bracket Height | 10.8" |
Handlebar Geometry:
| Rise | 7" |
| Width | 26.25" |
| Backsweep | 6° |
| Upsweep | 3° |
