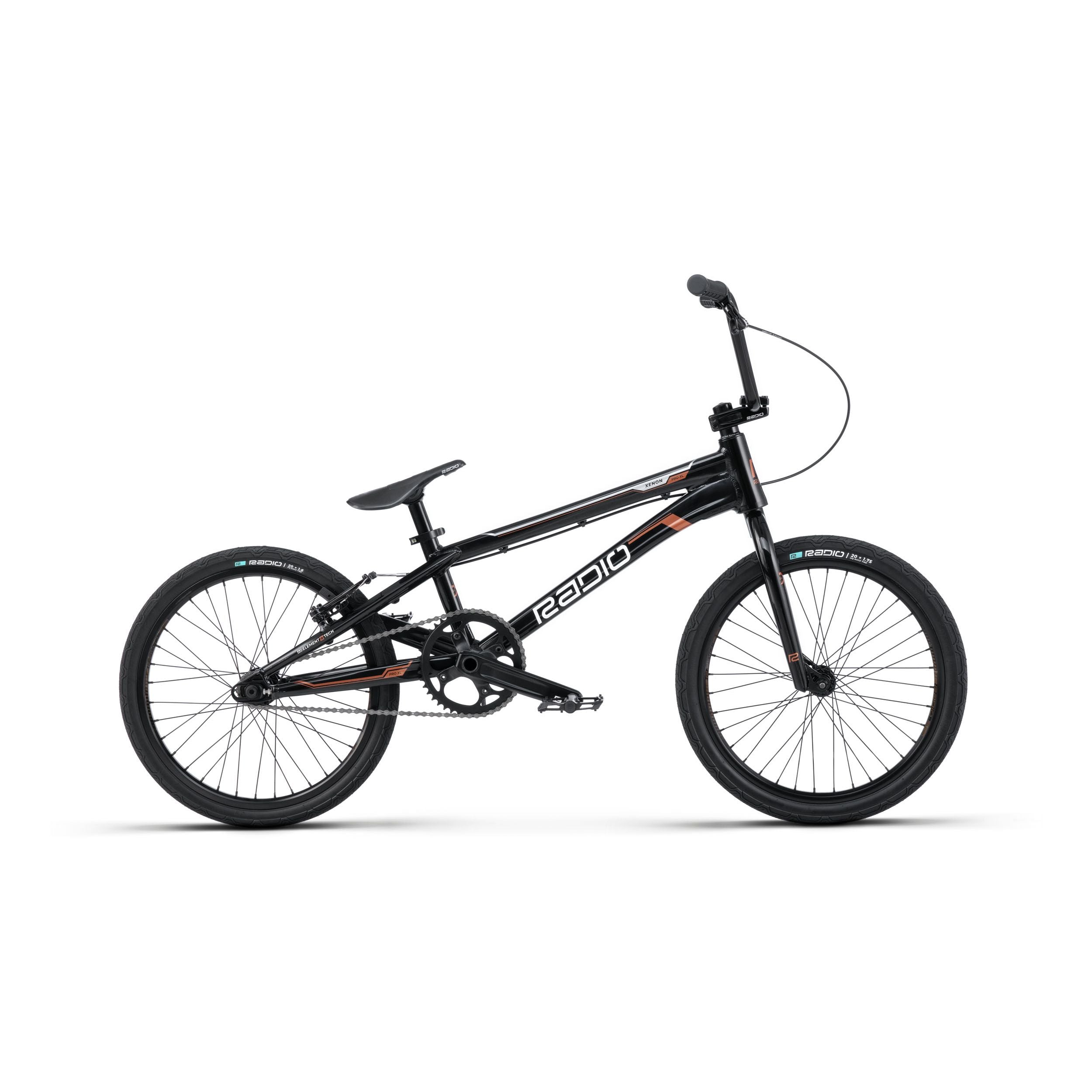

RADIO BIKES Race Xenon Pro XL Complete Bike 20"
Couldn't load pickup availability
Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!
Need help choosing the right size?

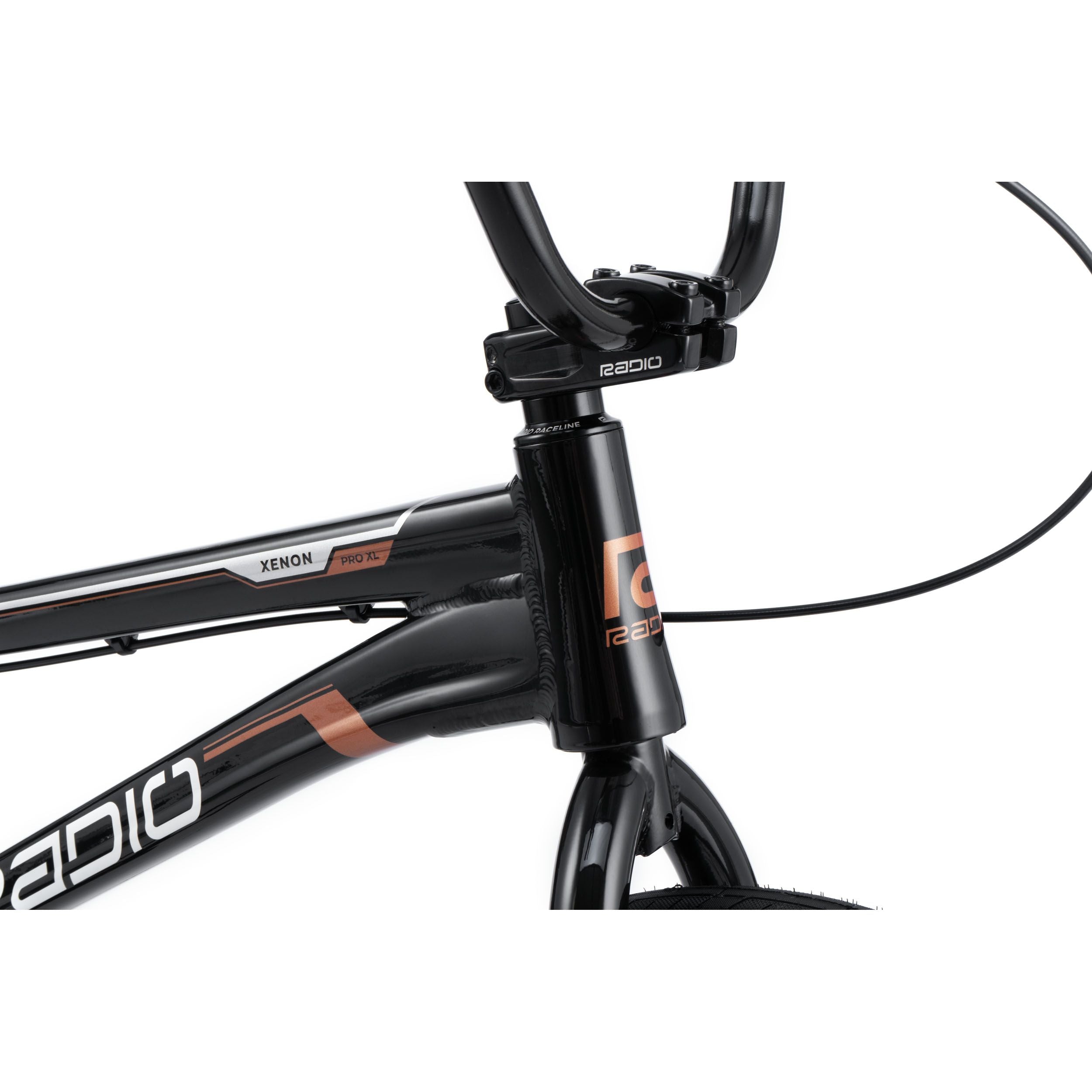

- FRAME: hydroformed 6061-T6 alloy frame, tapered headtube, forged & disc brake mount ready dropouts, with int. chaintensioners
- FORK: crmo fork, 1-1/8" butted steerer, crmo fork legs, 30mm offset
- HANDLEBAR: 4130 crmo bar, seamless
- GRIPS: RADIO RACELINE "XENON" grips, diamond knurling, clamp on grip, 139mm length
- STEM: RADIO RACELINE "XENON PRO" toploader stem, ext. 53mm, cold forged/cnc alloy
- HEADSET: RADIO RACELINE "PRO" integrated headset, sealed, threadless, 1-1/8" - 1.5", including fork crown race 1.5"-1 1/8" converter
- BRAKE LEVER: PROMAX "XL-373" brake lever, rear
- BRAKE: PROMAX "TX-131" brake, rear

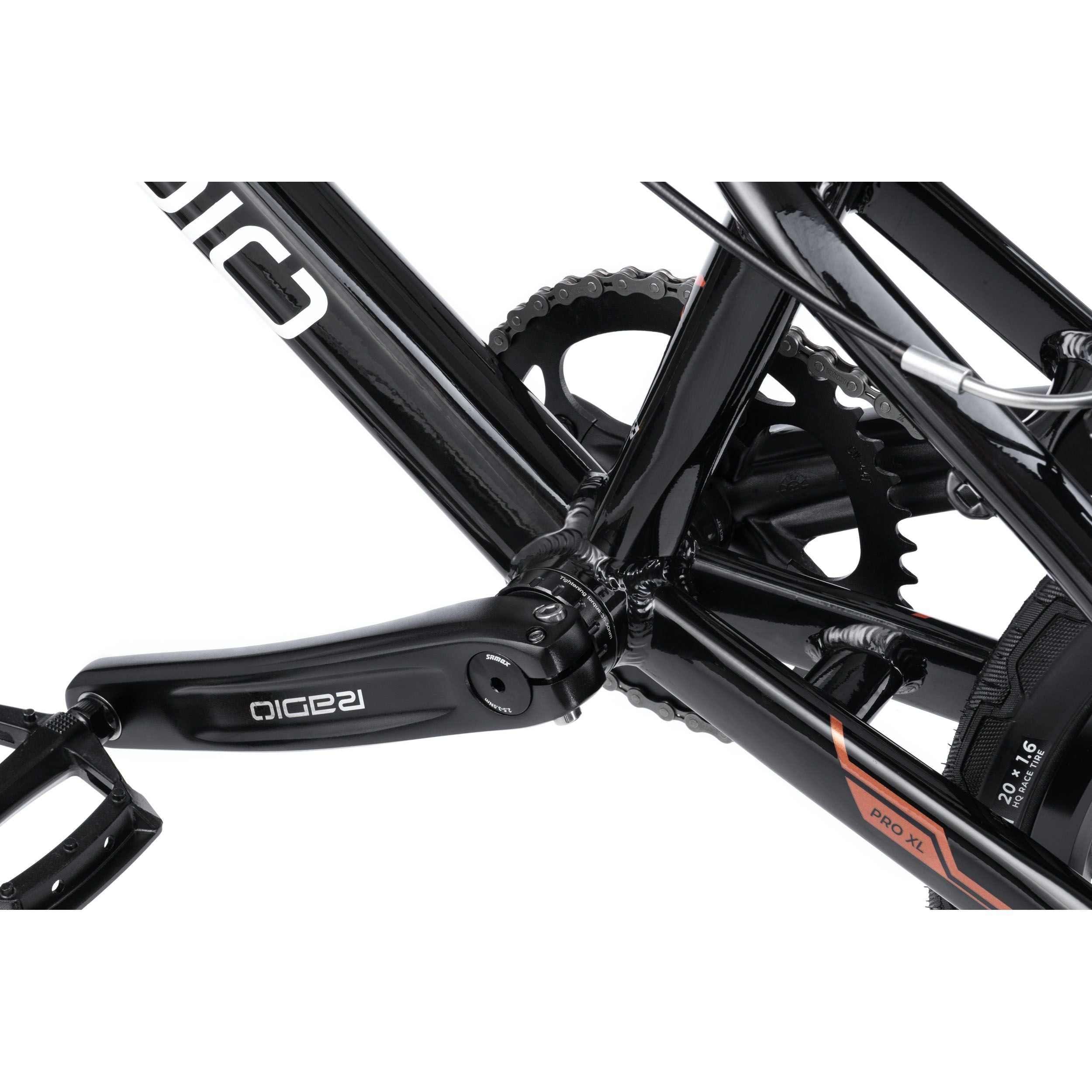

- CRANK: RADIO RACELINE, Xenon Pro, 2pc crank, cold forged/cnc, alloy, 180mm length, 24mm spindle
- BB: RADIO RACELINE "BSA24" bb set, external bearing cups, cnc machined, sealed
- PEDALS: RADIO RACELINE "XENON SLIM" pedal, alloy
- CHAIN: KMC "Z6" chain, 1/2" x 3/32"
- SPROCKET: RADIO RACELINE "XENON PRO" sprocket, 44T, alloy
- DRIVER: RADIO RACELINE driver, 16T, 1/2"- 3/32", sealed cassette

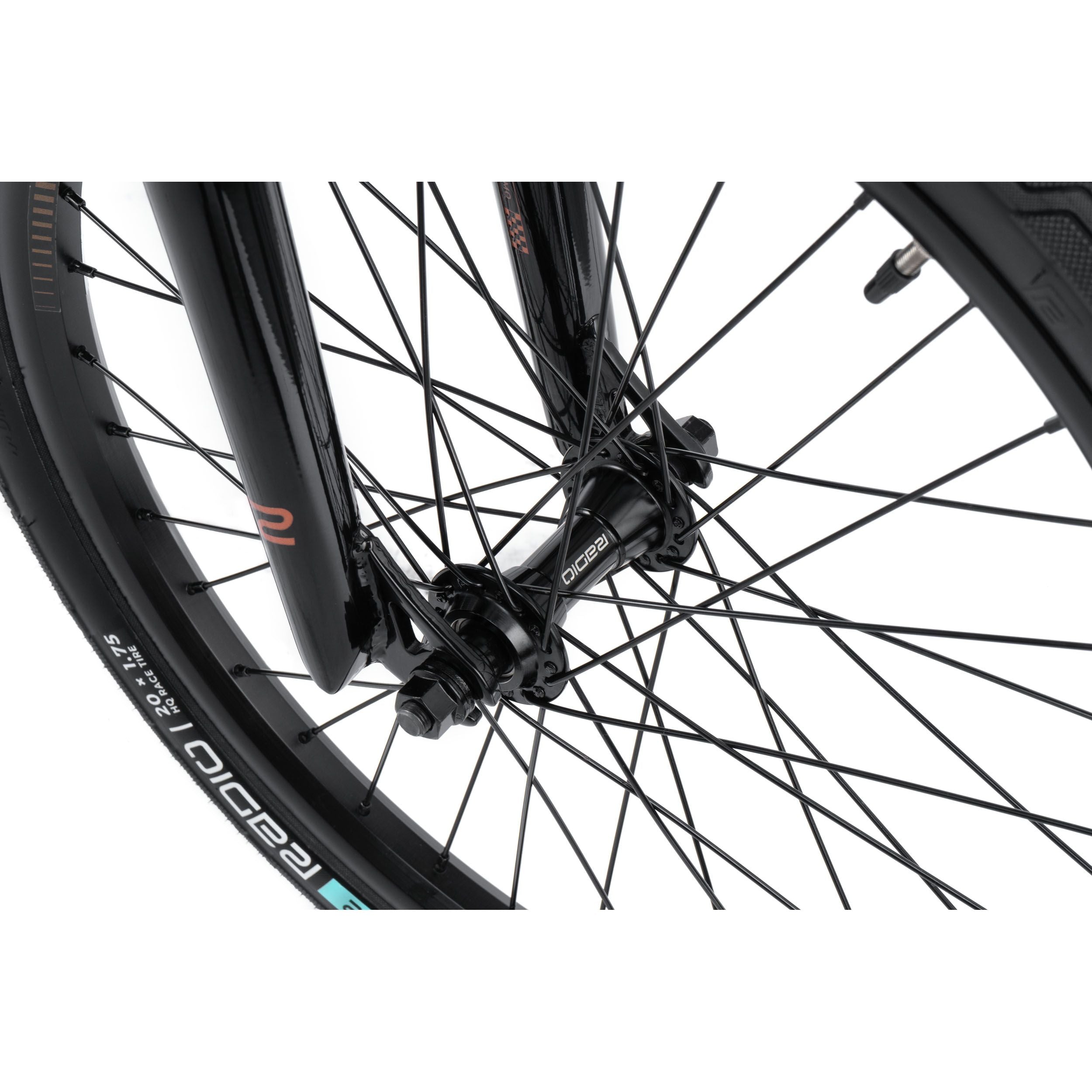

- FRONT HUB: RADIO RACELINE "XENON" front hub, alloy cnc, fully sealed, 36h, 3/8" crmo axle

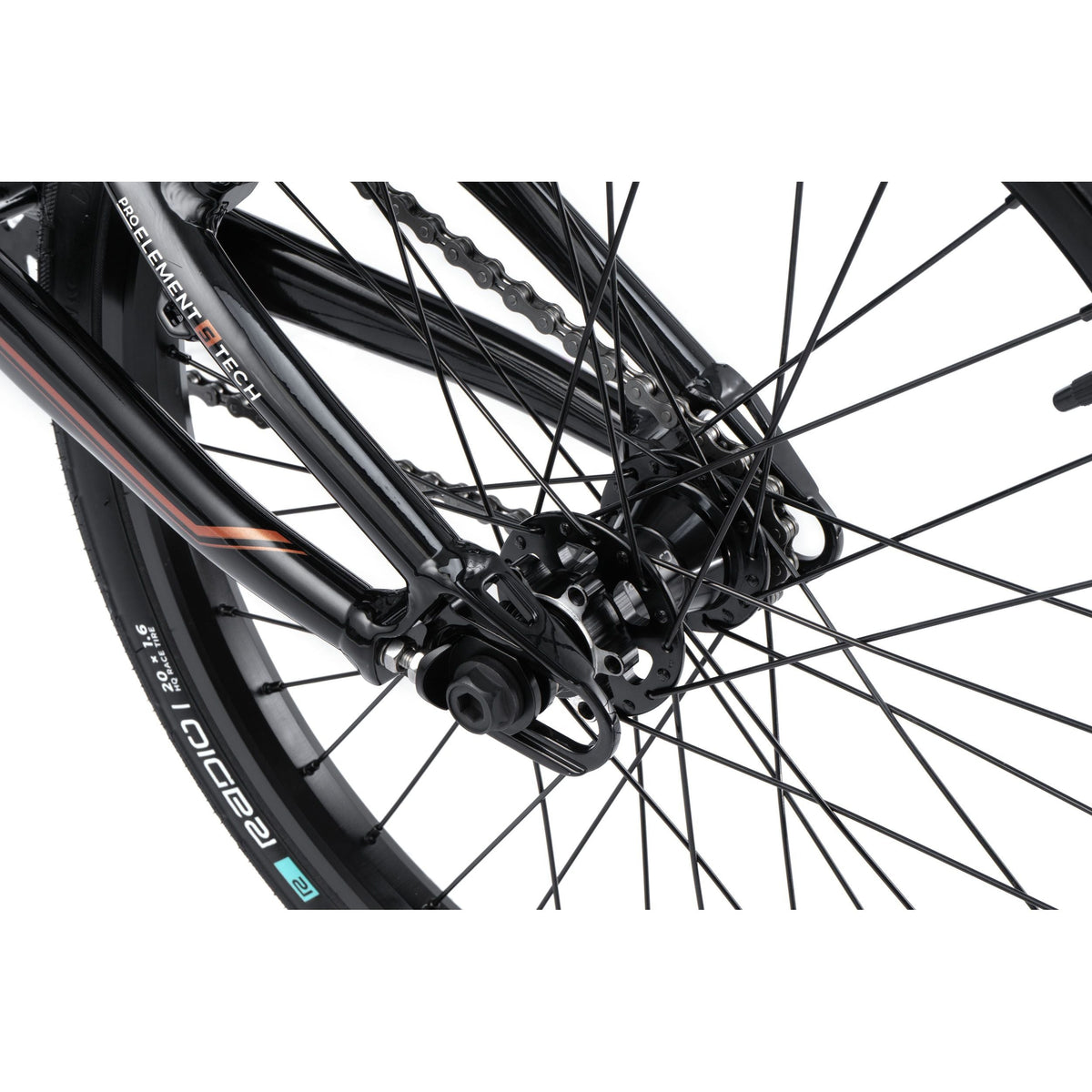

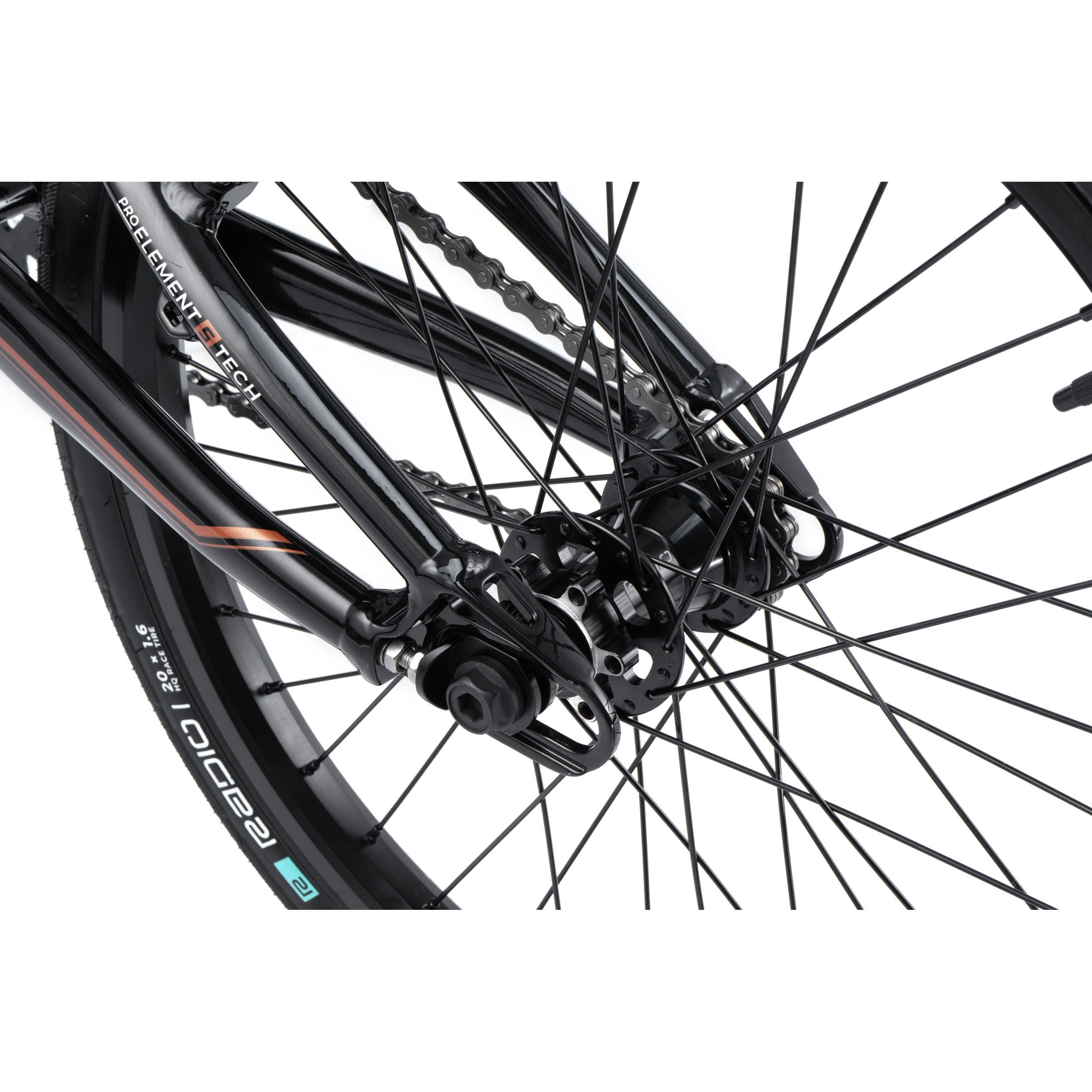

- REAR HUB: RADIO RACELINE "XENON" rear hub, alloy cnc, fully sealed, 36h, disc brake cassette, 3/8" crmo axle
- FRONT RIM: RADIO RACELINE "ARGON PRO" rim, sleeved joint, 36h, alloy
- REAR RIM: RADIO RACELINE "ARGON PRO" rim, sleeved joint, 36h, alloy

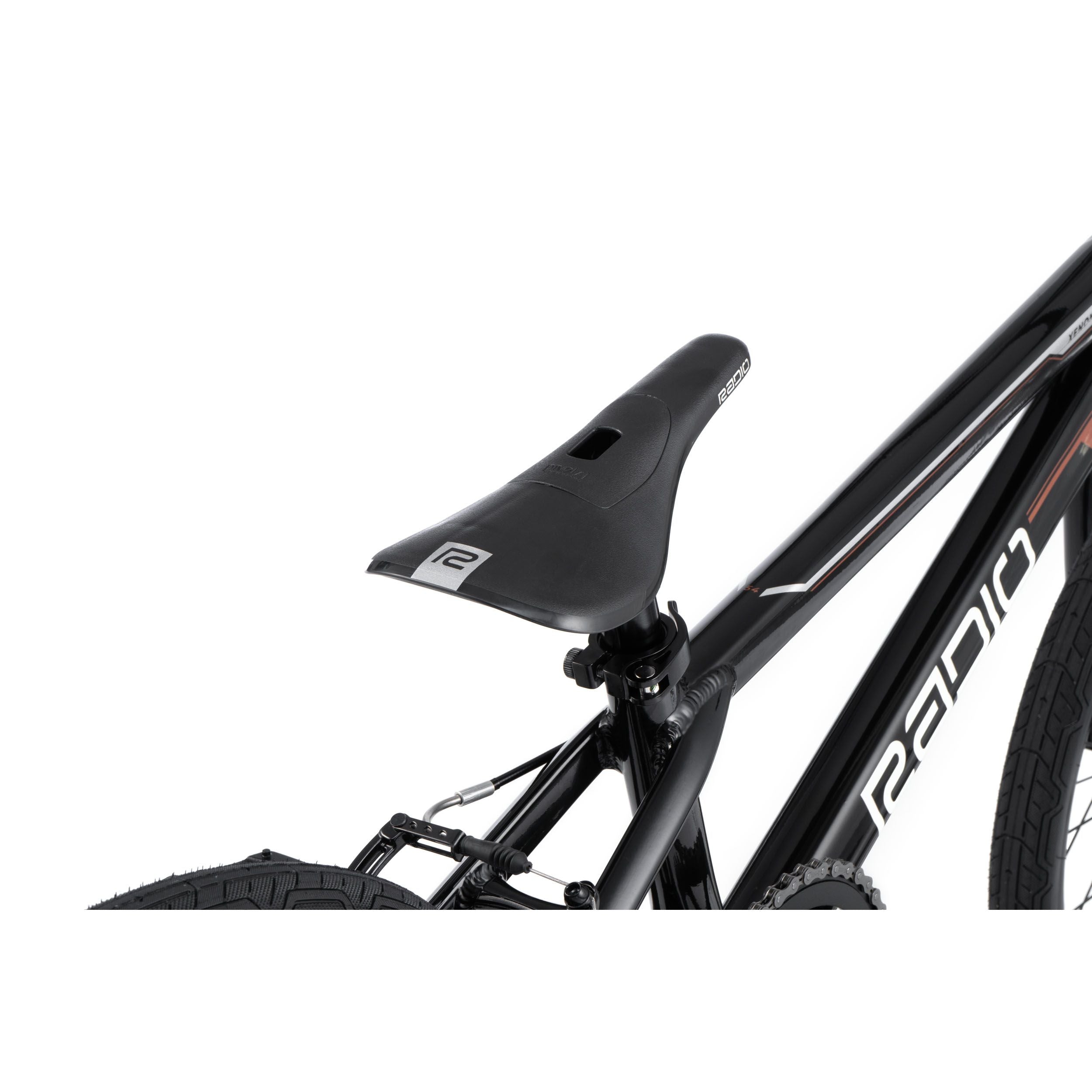

- SEAT: RADIO RACELINE "XENON" pivotal seat, no padding
- SEAT POST: RADIO RACELINE pivotal seat post, 27.2mm, alloy
- SEAT CLAMP: RADIO RACELINE "XENON" seat post, quick-release, alloy
- TIRES: RADIO RACELINE "OXYGEN" tires, front: 20" x 1.75" and rear: 20" x 1.6"
Weight: TBA
Frame Geometry:
| Top Tube Length | 21.25" |
| Chain Stay Length | 14.8" |
| Head Tube Angle | 74° |
| Seat Tube Angle | 71° |
| Bottom Bracket Height | 11.6" |
Handlebar Geometry:
| Rise | 8.1" |
| Width | 28.25" |
| Backsweep | 11° |
| Upsweep | 3.5° |
